Lorex LW2742 Night Vision IR LEDs Replacement

Written By: craig crisci
  • Comments: 0
Lorex LW2742 Night Vision IR LEDs Replacement

Difficulty

Easy

Steps

5

Time Required

5 - 10 minutes

Introduction

Is your night vision too dark to view, or not working at all? Replacing your camera's Night Vision IR LEDs might solve these problems.

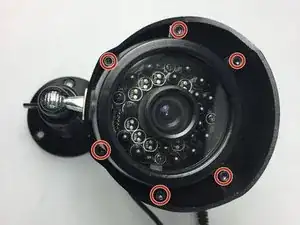

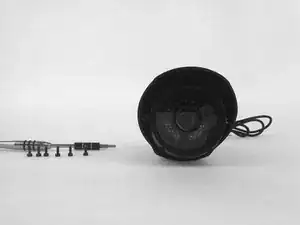

  1. bOtWGKCZKPOdVeSv
    bOtWGKCZKPOdVeSv
    METkCjTL6HAAfu4O

    • Remove the six 10mm Torx T10 screws on the camera face.

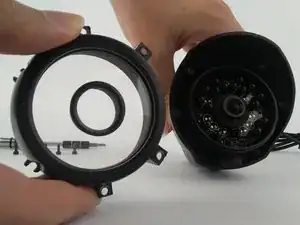

  2. CAuYO4sRw4rFo4rh

    • Remove the exterior lens cover.

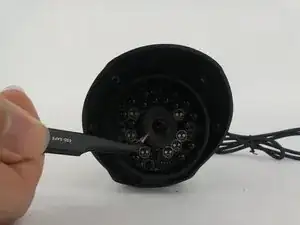

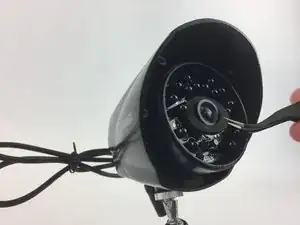

  3. IdpxrlkNOTKmSTJ4
    IdpxrlkNOTKmSTJ4
    tgtAlwMEpFMXGPrQ
    FSWAJsFs1Zk6RNOi

    • Remove the LED foam ring with tweezers.

    • Be aware, the electronic components of the LED board may be compromised if you use your fingers instead of tweezers for this step.

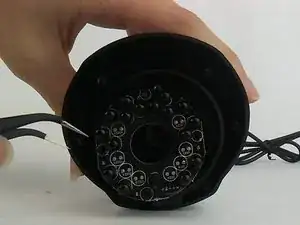

  4. woBdhFgXnfns1Hnm
    woBdhFgXnfns1Hnm
    mtdP6RbmUOWLEXPP

    • Remove the two 5mm Phillips #1 screws.

    • Remove the two 8mm Phillips #0 screws.

    • When reassembling, tighten the top and bottom 5mm screws first, followed by the left and right 8mm screws.

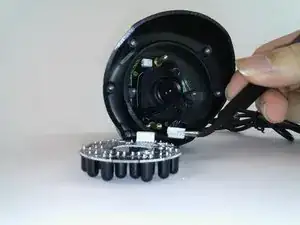

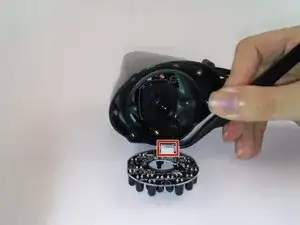

  5. UFlfDml6o3VaWItE
    UFlfDml6o3VaWItE
    1E3Or3FwoSleNRsU

    • Use tweezers to unclip the cables to the LED board

Conclusion

To reassemble your device, follow these instructions in reverse order.
