Lorex LW2742 Lens Replacement

Written By: Alex Kusmierz
  • Comments: 0
Lorex LW2742 Lens Replacement

Difficulty

Moderate

Steps

7

Time Required

5 - 10 minutes

Introduction

Is there a scratch, chip, or crack in your lens causing your image to be blurry? Replacing the lens may solve this problem.

  1. GlW5YMhKgFmffEXR
    GlW5YMhKgFmffEXR
    UmqHAiEHVKBhOas6

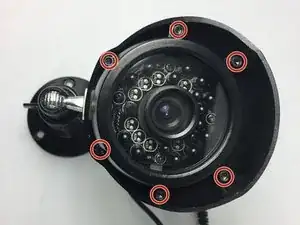

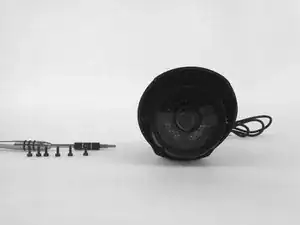

    • Remove the six 10mm Torx T10 screws on the camera face.

  2. 3KfMvnIDoFfDDXTh

    • Remove the exterior lens cover.

  3. RSIVS5cOLGTZsraw
    RSIVS5cOLGTZsraw
    ZEuFKc13SOoYT3WY
    tXj1vmJG2kiYs2kB

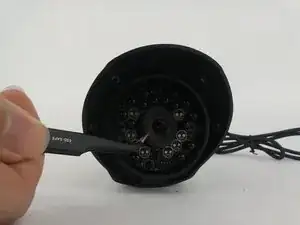

    • Remove the foam ring around the lens with tweezers.

    • Be aware, the electronic components of the LED board may be compromised if you use your fingers instead of tweezers for this step.

  4. gZXHCFQsAlSVfU6u

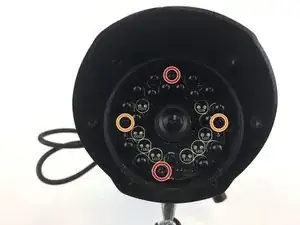

    • Remove the two 5mm Phillips #1 screws.

    • Remove the two 8mm Phillips #0 screws.

    • When reassembling, tighten the top and bottom 5mm screws first, followed by the left and right 8mm screws.

  5. XncLkxdtsWsVLv21

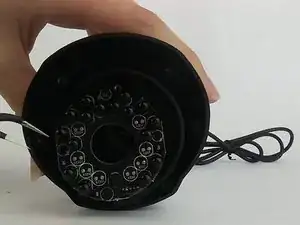

    • Remove the LED board with tweezers.

    • It is unnecessary to unplug the LED board from internal components for lens replacement.

  6. aaCyaPF5EJPfvXCZ
    aaCyaPF5EJPfvXCZ
    1QijeITMk2O3M3yE

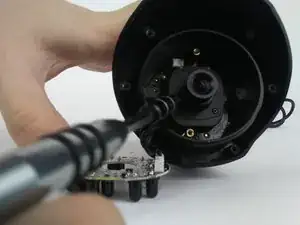

    • Use the Phillips #000 to remove the three 3mm screws on the face of the camera lens

  7. pSFShBseVMB6FNln

    • Remove the camera lens.

    • After replacing camera lens and before reassembly it is encouraged to clean new lens surface with a microfiber lens cleaning cloth

Conclusion

To reassemble your device, follow these instructions in reverse order.
