Introduction
Problem: All lights and the horn have stopped working. However, the panel and motor function normally.
Cause: Faulty DC converter (converts the battery's 72V to 12V).
Solution: Replace the broken DC converter with a new one.
Parts
-
-
Use the main power switch located under the seat to completely disconnect the energy supply. Make sure it's at the OFF position.
-
-
-

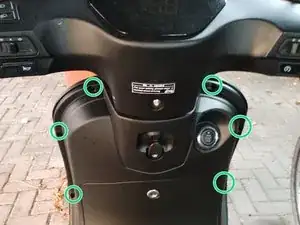

Identify and unscrew the fasteners securing the front cover of the scooter. There are six of them, reachable from the drivers' space.
-
-
-

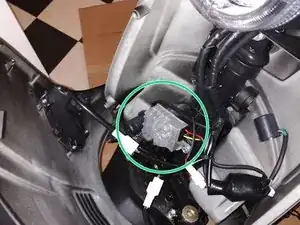

Carefully remove the front cover, and look for a large component with an aluminum heat sink, attached with two screws. This is the DC converter.
-
Detach its electrical connections and unscrew it from the scooter frame.
-
-
-
Switch the scooter's energy back on. Turn on the scooter and check that the lights and horn are functioning properly.
-
Your lights and horn should now work as expected!
