LG Tone Pro HBS750 Magnet Replacement

Written By: Andrew Oglesby
  • Comments: 2
LG Tone Pro HBS750 Magnet Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 30 minutes

Introduction

  1. le6TT6xmvqUm6I6o
    le6TT6xmvqUm6I6o
    FuMOY3pNGJZwOSNO

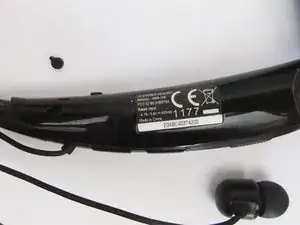

    • Find the side of the device with the defective magnet. Remove the rubber piece on the underside of the device that protects the screw.

  2. kN5JbVI1yWTPkceO

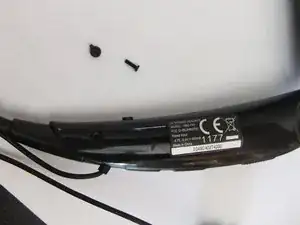

    • Remove the small screw from the underside of the device and place it aside.

  3. FmcC5QtJyO4WFvUn

    • Place a small prying tool in between the two cases and slowly push the two apart. Be sure not to force the case apart, as it may snap in the process.

  4. EeXlUsvYu2V5hXKD

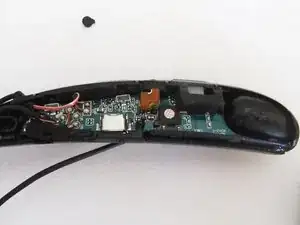

    • Once the case is open, the small magnet is now visible and can be replaced.

    Where do you see a magnet in that picture?

    deadtedw -

  5. PWamYkSyHtRbDbco

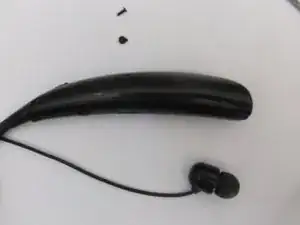

    • Once the new magnet is in place, the casing can be pushed back together.

  6. GMUYlAgccJY3yb4B

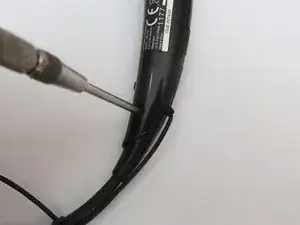

    • The small screw that was taken out at the beginning can be screwed back into the device.

  7. GVb34ZfFR5GueTFy

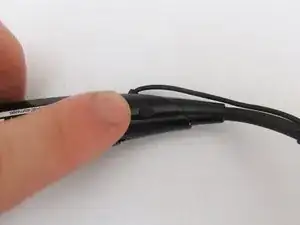

    • Push the small rubber piece back into place over the screw.
