Kenmore 110 Series Washing Machine Lid Switch Replacement

Written By: Robert Trout
  • Comments: 17
Kenmore 110 Series Washing Machine Lid Switch Replacement

Difficulty

Moderate

Steps

3

Time Required

15 - 30 minutes

Introduction

Use this guide to replace a faulty lid switch on your Kenmore 110 series washing machine.

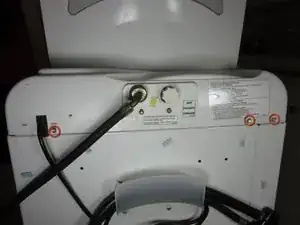

  1. BantEpN3IlR62iev

    • To avoid risk of electric shock, unplug the washing machine.

    • Using a 5/16" socket wrench or an adjustable wrench, remove the three screws from the top rear of the washer.

    • Lifting from the rear, remove the top panel.

    • Set the top panel on its rear face, with its underside facing you.

    • The top panel will still be connected to the washer by wires and hoses. It will help if you have a flat raised surface to set the top panel on.

  2. MGBkFwLkQAsgZghm
    MGBkFwLkQAsgZghm

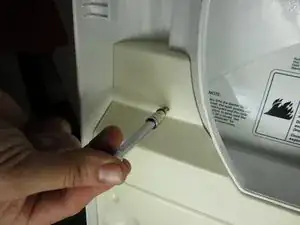

    NXZIUnMCgGy1IwSG

    • Using a 5/16" socket wrench or hand wrench, remove the two screws from the component cover.

    • Gripping from the bottom, pull the component cover out of the washer.

    My switch is brown and black with 4 wires, no ground, and soldered in. Pn: W10238287 Not the one you're showing. Kemore washr mod #110

    Vince Worren -

    Please reply as I am 24yrs HVACR and zero appliance tech.

    Vince Worren -

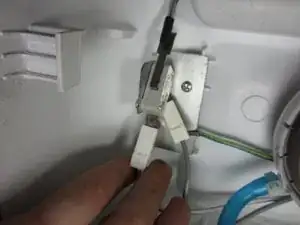

  3. edW5eZQpOPNEIhLn
    edW5eZQpOPNEIhLn
    YR1qEdIGyW44RhnU

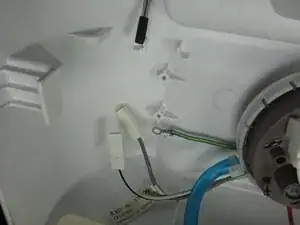

    BXP1BvYdsJRYfhLm

    • Carefully unplug the two wires connected to the lid switch.

    • Remove the two Phillips screws securing the bracket.

    • Remove the green ground wire.

    • With a screwdriver, remove the single screw connecting the lid switch to the bracket.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Robert Trout

Member since: 27/09/12

1234 Reputation

15 comments

My Kenmore Model 110.24622300 does NOT look anything like this!

rlhaan36 -

my model # 11088732796 is not the same as yours

glafleur1 -

No it ia neither of those. Thank for the reply though. My washer is a 90 series.

Jenn Leffring -

Lol I found the solution on YouTube. All it takes is a zip tie because the lid switch for he 90s series Kenmore washer is two half pieces glued together

Jenn Leffring -

my Kenmore washer model# is 110.24812200; series CP2654205. Cannot remove top to repair lid switch following your video! removed the three screwsf from the back but cannot get control panal to come off! Please reply soon.

bill wardle -

I am trying to figure out what exactly is wrong with our 110. We have the portable washer and it worked great, up until it just didn't work. I noticed before it quit the buttons were hard to push. I thought it was my fingers. Just not hitting the button right. So I watched my hand and saw I was. It did that last load and that was it. The control panel still lights up for a few seconds and than goes blank. You cannot select anything. I thought it might be the lid switch because if the lid isn't latched, anything gets caught in the way, it will not work. Kids socks get in the darndest places. Anyone have this issue? It's driving me crazy. If so, how did you fix it? Thank you.

Shara Holmen -

Umm, why is my detailed question about a Kenmore 80 Series (or is it a 110 Series?) washing machine being recognized as spam by your automated mediation system?  I even created an account and logged in before typing and submitting the comment/question.  ???

joediddly13 -

I cannot find a switch model number for Kenmore 110-92282100 where can I get a switch

Helen Neal -

Hi Helen,

You can find it in the following link https://www.searspartsdirect.com/model-n...

Luis Fernando Guzman -

I cannot find a switch for my Kenmore washer model no.

Helen Neal -

What is your Kenmore series and model? The series number is on the top of the washer

Luis Fernando Guzman -

when I start the washing machine model 110.20022012 the lid lock light starts flashing and will not stay locked to wash the clothes. what is the problem. We have changed the switch but it is still doing the same thing

Pat Knight -

My110.22352 model, Kenmore washers lid is locked with a batch of washed clothes, & won't unlock or start a washing cycle. It keeps clicking, & the light goes on & off. Tried all of the above comment solutions, no go. Have it unplugged now, because of continued clicking. All local repair men are currently closed. Any suggestions ?

Dale Ardoin -

MyMy110.22352 model Kenmore washers lid is locked witha batch of wet clothes. It keeps clicking & light goes on & off.Tried all above comment suggestions, nothing works. Have it unplugged because of continued. Clicking. All repairmen are closed, being weekend & holiday. Any suggestions?

Dale Ardoin -

Really? 95,000 plus views? A lot of garbage switches out there. This video/ instruction is about as useful as the switch. I bought Kenmore because the name meant something. Not anymore!

Wolfman63 -
