Introduction
Use this guide to replace a faulty electronic control on your Kenmore 110 Washing Machine.
-
-

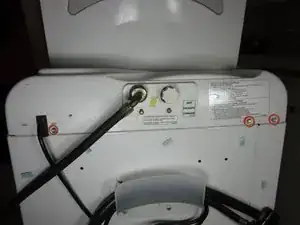

Using a 5/16" socket wrench or an adjustable wrench, remove the three screws from the top rear of the washer.
-
Lifting from the rear, remove the top panel.
-
-
-

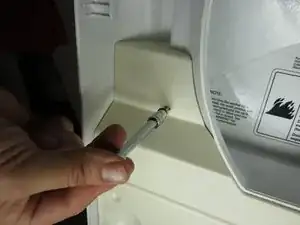

Using a 5/16" socket wrench or a hand wrench, remove the two screws from the component cover.
-

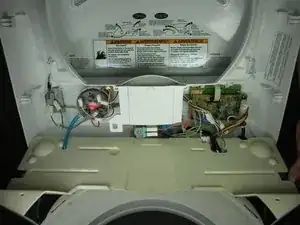

From the bottom, pull out and remove the component cover.
-
-
-

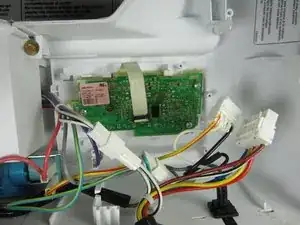

Carefully remove the three wire harnesses.
-

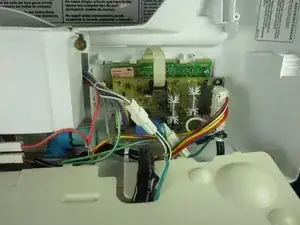

With a phillips head screwdriver, remove the three mounting screws.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
