Kenmore 110 Series Washing Machine Drive Belt Replacement

Written By: Robert Trout

Comments: 16

Kenmore 110 Series Washing Machine Drive Belt Replacement

Difficulty

Moderate

Steps

Time Required

15 - 30 minutes

Introduction

Use this guide to replace a worn drive belt in a Kenmore 110 Series Washing Machine.

Tools

Step 1

To avoid risk of electric shock, unplug the washing machine.

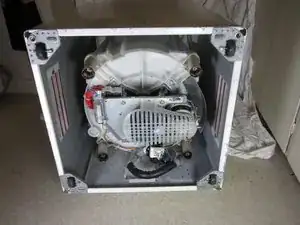

Lay the washing machine on its back.

Step 2

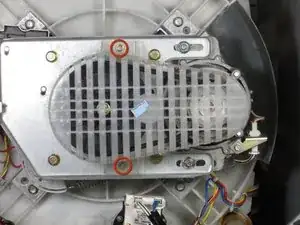

Using a 5/16" socket wrench, remove both screws from the belt cover.

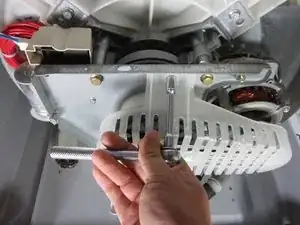

Remove the belt cover from the washer.

Step 3

Using a 1/2" socket, remove the bolt securing the drive pulley.

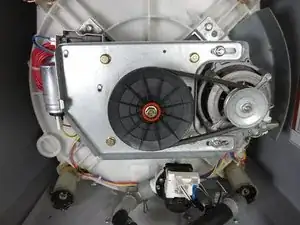

Remove the drive pulley and belt.
When installing a new belt, wrap the belt around both the motor and drive pulleys before reinstalling the drive pulley.

I have difficulty to remove the bolt suring the pulley. Is there any tricky to move the bolt?

John Wang - 14/03/15

need to remove shaft off pulley

Valery Ryz - 03/12/15

I have a very old Kenmore Washer. The belt is loose but not broken. How do I tighten?

teedle54 - 30/12/15

Thank you for the help .

Tesa Martin -

what is the shaft? we can't get our on either

Jeff Maddox -

How can I Kno if it's the motor coupler or belt? Around the coupler is white plastic shavings.

Shelley's 3 -

The new belt is rigid and we're unable to stretch around the larger wheel. Any tricks?

Bill Lescarbeau -

Conclusion

To reassemble your device, follow these instructions in reverse order.
