Katadyne Hiker Water Filter Cleaning

Written By: Dylan Carey
  • Comments: 1
Katadyne Hiker Water Filter Cleaning

Difficulty

Easy

Steps

8

Time Required

5 minutes

Introduction

Has your Katadyne Hiker water filter become unable to pump or exceptionally hard to do so? Use this guide to regain functionality and ease of use.

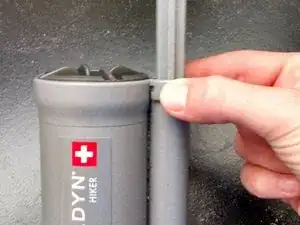

  1. KrDsW2eEweCdSS4d

    • Remove the "snap fit" guard by pulling directly away from the filter body.

  2. aG1woGNcHsU3UNSh

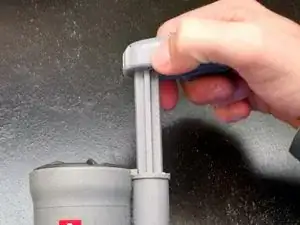

    • Remove the pump handle by pulling it completely out of the shaft.

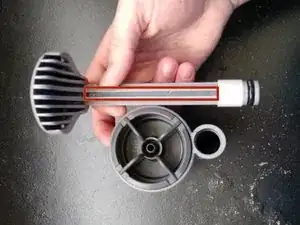

  3. I2KdnkXJj6gZKuhB
    I2KdnkXJj6gZKuhB

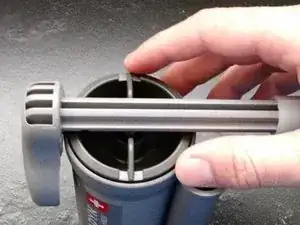

    M3FLiiRSQvtHF4fC
    byPBJpvEM2DOtFQY

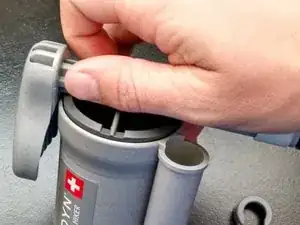

    • Use the pump handle to remove the filter cap.

    • Place the horizontal groove of the pump handle depicted in image 1 onto the filter fins.

    • Press the pump handle firmly against the fins and turn the filter counter clockwise.

    • Once unscrewed, remove the filter completely from the body.

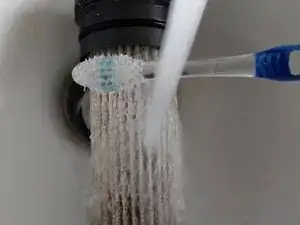

  4. gbU6iJInEJYManyU
    gbU6iJInEJYManyU

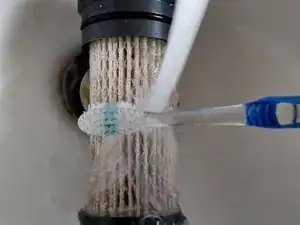

    vZMs4gUFbjGlYI55
    Gaj4tZD2dUmAtAiZ

    • Only perform this step if solid particles are evident on the outside of the filter.

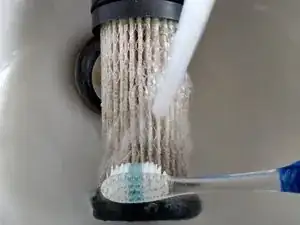

    • Lightly brush the entire filter with a soft bristled toothbrush under running water.

  5. tKawaJkOChYIKxfI

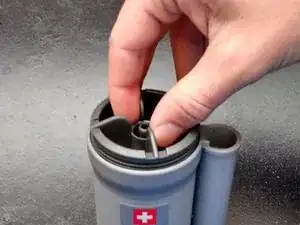

    • Replace the filter inside the filter body and screw clockwise until tight.

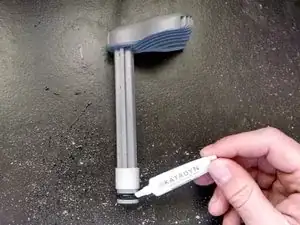

  6. vVUvUh2BsXx2HJxH

    • Lubricate the pump handle O-ring extensively with the Katadyne lubricant (sold with pump).

  7. SauOXVdRAWeREvnD

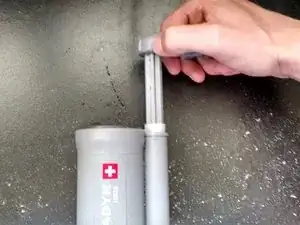

    • Replace the pump handle inside the pump handle shaft.

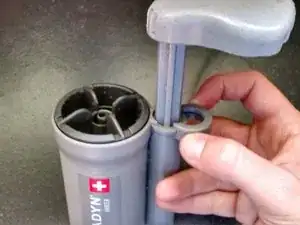

  8. wCF3V1gPbA5HnaCS
    wCF3V1gPbA5HnaCS

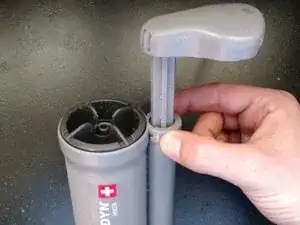

    CWPlGBejQ2i42ZcC

    • Replace the "snap-fit" guard by pushing directly toward the filter body.

Conclusion

If difficulty pumping persists, a new filter is required.
