Karcher Vacuum Universal 14286230 2014 Power Switch Replacement

Written By: Arthur Shi
  • Comments: 1
Karcher Vacuum Universal 14286230 2014 Power Switch Replacement

Difficulty

Moderate

Steps

7

Time Required

No estimate

Introduction

Follow this guide to remove and replace the power switch module from the Karcher Vacuum Universal 14286230 2014.

  1. alfLpCqELZZeV4wO
    alfLpCqELZZeV4wO
    bPMU2uG1FOiKWfwI
    eHwxdfXnm5AuXM3c

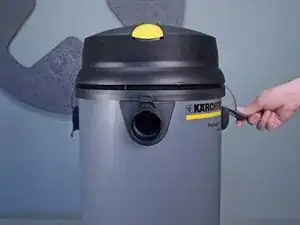

    • Before you begin, unplug the vacuum and disconnect all hose accessories.

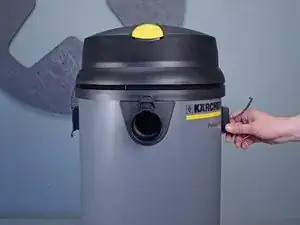

    • Release the two latches locking the top assembly in place.

  2. mkCbSYSOaMvorvem
    mkCbSYSOaMvorvem
    LBjveSSRvmXcInfF

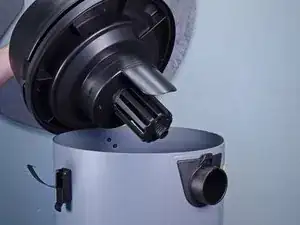

    • Lift and remove the top assembly from the tank.

  3. fOWlsHUnKN2T5bWO

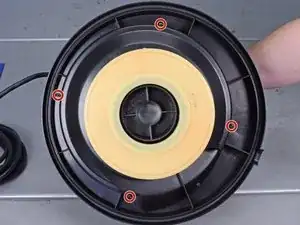

    • Remove the four T15 screws securing the top assembly.

  4. OHB4QWM2cqWGBwZm
    OHB4QWM2cqWGBwZm
    Cm1SBWfMWkmb3xVE
    KDoR2c6Ct5JXWLCt

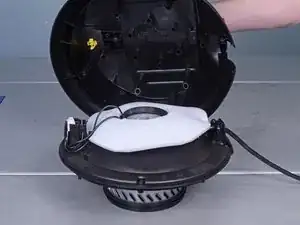

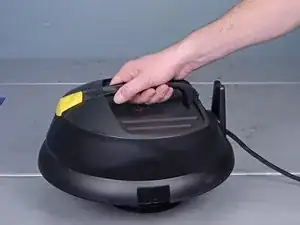

    • Lift and remove the top plastic cover from the motor assembly.

    • These images show the assembly with the filter portion already removed. You don't have to remove the filter for this repair.

  5. cLrRcBtJdJJUtAES
    cLrRcBtJdJJUtAES
    sswKrlud4jLHodmN

    • Reassembly tip: Follow these tips to help you re-align the plastic layers:

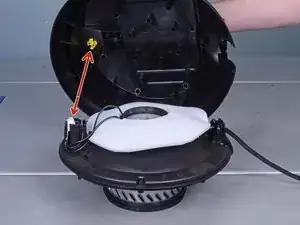

    • The switch module should line up with the yellow plastic switch plunger.

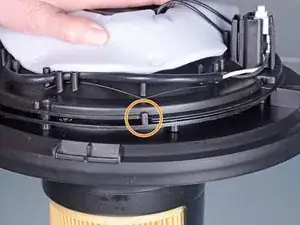

    • The two plastic moulded discs line up using this black tab.

  6. KhbpJtXYxEvFYVOG
    KhbpJtXYxEvFYVOG
    cyDhjoiw5OsdbdBu

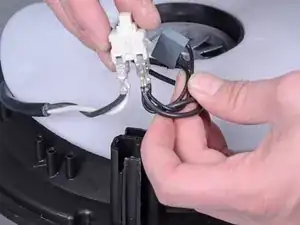

    • Slide the switch assembly out of its plastic mount.

  7. IadINBD2PTfUkCMo
    IadINBD2PTfUkCMo
    VTSGkdyTe2hdDEqi

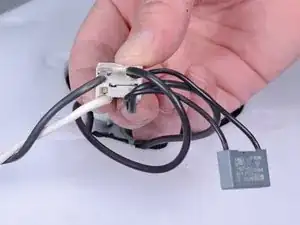

    • Unplug the wires from the switch. These are standard spade terminals that can be pulled apart.

    • Remove the switch.

    • Reassembly tip: When you plug in a new switch, use the middle image to help you properly wire the switch.

Conclusion

To reassemble your device, follow these instructions in reverse order.
