Introduction
Tools
-
-
Remove the two Torx T15 screws at the bottom of the side panel.
-
Remove the Torx T15 screw on the front bottom right.
-

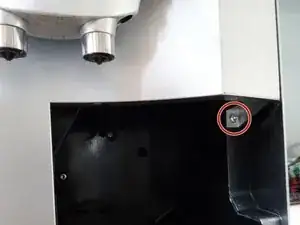

Remove the Torx T15 on the right underside of the front access door. Flip the door open a few inches.
-
-
-

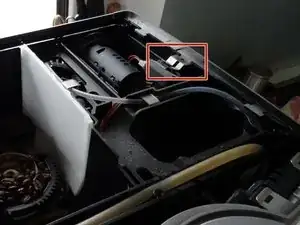

A metal plate rests loosely on the top of the side panel and holds the rotation sensor in place. Note the position of the plate. Simply lift the plate upwards.
-
First lift the side panel away a little at the bottom, then lift it out at the top.
-
Conclusion
Work through the steps in reverse order to reassemble your device.
