JVC Adixxion GC-XA1BU Zoom (+/-) Buttons Replacement

Written By: Christina Michelle Johnson
  • Comments: 0
JVC Adixxion GC-XA1BU Zoom (+/-) Buttons Replacement

Difficulty

Moderate

Steps

15

Time Required

25 - 35 minutes

Introduction

To complete this guide, you will need to purchase a new zoom (+/-) button and make sure that you have the tools listed. It is always good practice to make sure that the device is completely powered off and remove the battery before attempting any repairs.

  1. 4shyQt5amun1eDKJ

    • Find the side of the camera with the black switch shown.

  2. B2Ja4KpkSs213ws4

    • Push down on the black switch.

  3. UuBMOoDQ5IxWHGIb

    • Slide the battery cover back while pushing down on the black switch.

  4. G2BFqCBcMlljvPYA
    G2BFqCBcMlljvPYA
    MQiOEgZhZbvEMgkx

    • Open the battery compartment and push the blue battery release switch.

  5. XlJHBBAkLQ4jSR4x

    • Remove the battery from the camera.

  6. oDbfFbEEE252AewQ

    • Remove the two Phillips screws (4mm x 3mm) using the Phillips #00 screwdriver.

  7. Yfy2QoqCVJMpRpIV
    Yfy2QoqCVJMpRpIV
    kVwDLeuE1PmrPtx2

    • Remove the 8 screws (5mm x 4mm) from the corners of both the front and back of the camera (4 screws on each side) using the T6 Torx screwdriver.

  8. tigebEgbvvlHbxMi

    • Carefully open the camera as shown and gently peel off the black cover tape.

  9. GZCaCBhFhBgRXNu4
    GZCaCBhFhBgRXNu4
    IJlv2skKDewADkal
    sTYM2WNTKfEEsDOQ

    • Carefully lift up and remove the cable ribbon clip using the tweezers.

  10. 4jIwC6jRLGfUD6on
    4jIwC6jRLGfUD6on
    KLpk2sRIvjlR12EZ

    • Carefully grasp and remove the ribbon cable using the tweezers.

  11. DCO1vgcRJwgreXEW

    • Turn the camera as shown and carefully remove the glue from the connector.

  12. WFoPKxSRX6pE5nNX
    WFoPKxSRX6pE5nNX
    w5oj5QhQIcjd5uHS

    • Carefully pull the white clip out of the casing using the tweezers.

  13. 6dvXfDRI2ClDK1NL
    6dvXfDRI2ClDK1NL

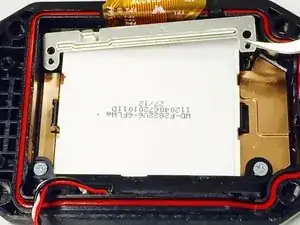

    tDVLEliB5nLxK5qL

    • Remove the top two Phillips screws (4mm x 3mm) using the Phillips #00 screwdriver before removing the silver plate with the tweezers.

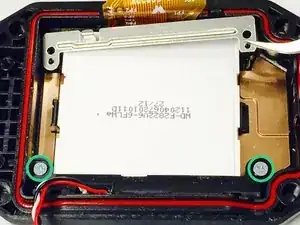

  14. sWZsyVMfZyRJ4sY1

    • Remove the bottom two Phillips screws (4mm x 3mm) using the Phillips #00 screwdriver.

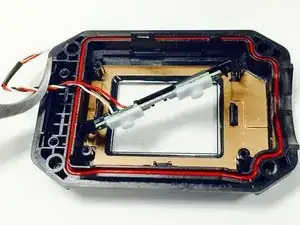

  15. GNplKLM3MhgTUVt6
    GNplKLM3MhgTUVt6

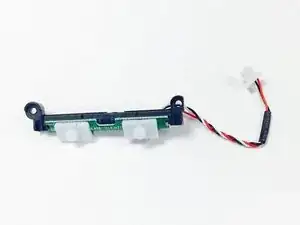

    R5ocv4xFFXV1ZoTx

    • Use the tweezers to gently pull the red, black, and white threaded wire and remove the attached panel as shown.

Conclusion

To reassemble your device, follow these instructions in reverse order.
