Introduction
Within this guide the user will learn and follow the steps to replace the internal speakers of the JBL Flip. A soldering iron will be used to unsolder some wired connections. To safely use the soldering iron please visit this desoldering guide How To Solder and Desolder Connections.
-
-
On the end with the buttons, remove the end cap using the flat head screwdriver to get between the rubber lining and the plastic.
-
After the cap is removed, unscrew the two 3.3mm screws using a size 1 ph screw driver.
-
-
-
Unscrew four 3.3mm screws on each end of the JBL using a size 1 ph screw driver (8 screws total).
-
-
-
Remove outermost white casing by gently lifting up on one side.
-
Remove two 5mm screws holding the silver back plate in place with a size 2 ph screw driver.
-
Gently lift up and remove the silver casing.
-
-
-
Pry the four tabs on each side of the speaker cover (8 tabs total).
-
Pry the two tabs on each end to remove the cover (4 tabs total).
-

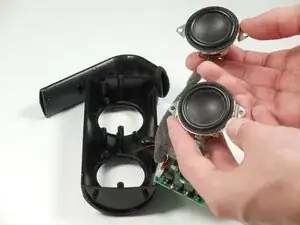

Slide speaker out of metal speaker cover.
-
-
-
Remove 5mm screw in the middle of the back of the device with a size 2 ph screw driver.
-
Unscrew the two 5mm screws on each side using a size 2 ph screwdriver.
-

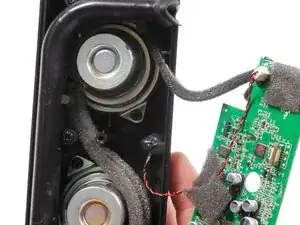

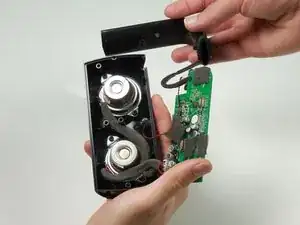

Open the speaker.
-
-
-

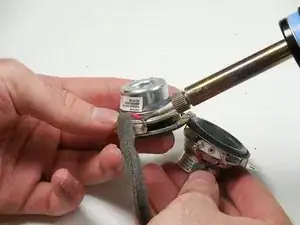

Take a soldering iron to the two solders, one for each cable.
-

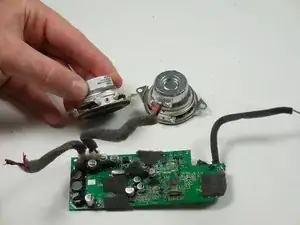

Once the soldering has melted, remove each wire from the speaker.
-
To reassemble your device, follow these instructions in reverse order.
