JBL Clip 3 Speaker Housing Replacement

Written By: Kyle Montague
  • Comments: 0
JBL Clip 3 Speaker Housing Replacement

Difficulty

Moderate

Steps

4

Time Required

15 minutes

Introduction

This guide is to help you replace the speaker housing on a JBL Clip 3 speaker.

If the original speaker housing on your JBL Clip 3 is damaged or worn, you can use this guide to replace it, improving both the look and performance of the speaker.

Note: Before beginning, make sure to power off the JBL Clip 3, and disconnect it from any external power sources.

  1. BOpGc6lTaVddjyCM
    BOpGc6lTaVddjyCM
    CBDVHEIwKLZZdQDZ

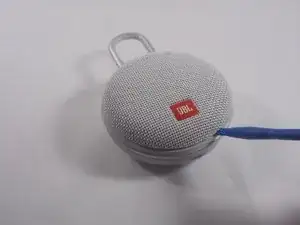

    • Insert the iFixit opening tool between the speaker grill and speaker housing and pry around the entire perimeter of the device until the grill releases.

    • A strong adhesive attaches the grill to the housing, and requires some time and patience to break. Use mild heat to loosen the adhesive if necessary.

  2. HdU4vrKWjkmoUv3j
    HdU4vrKWjkmoUv3j
    x5KDxtNd5PC1unXY

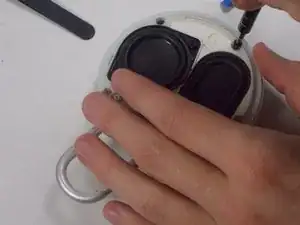

    • Use a Phillips #1 screwdriver to remove the five 6.3 mm screws around the perimeter.

  3. EgNqUvkMwuHOOLqO

    • Separate the speaker housing from the rest of the body.

    • This requires minimal force; they are not glued together.

  4. QlGUcNlJZwq1uMXj
    QlGUcNlJZwq1uMXj
    6sAsMitOoVoDCbKR

    • Use tweezers to remove the 2 pin and 4 pin connectors from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
