How to clean the Olympus Stylus 760 lens and sensor

Written By: Derek Guzman
  • Comments: 0
How to clean the Olympus Stylus 760 lens and sensor

Difficulty

Moderate

Steps

11

Time Required

No estimate

Introduction

  1. PlvKWfJRr4rKkrAe

  2. lKjIpY3IgElHbsVj

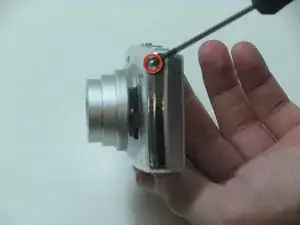

    • Remove the screw located on the right side of the camera


  3. SR4JAFlYDFIFUHfP

    • Remove the two screws from the left side of the camera

  4. SKB6FmJqx1iYBDmr

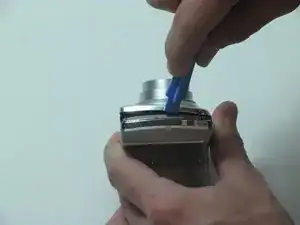

    • Use a small prying device to delicately separate the front casing from the back.
New line.

    • When separating the 2 cases be cautious of the silver band and buttons that located in the middle of the camera. They will come loose.

  5. CBrvPTdPCc5RqST3
    CBrvPTdPCc5RqST3
    R6jFP5on5B6EvWU5
    LVxYK1reHu4uoOVY

    • Remove the 2 screws on the right side of the camera.

    • Remove the 2 screwson the left side of the camera

    • CAUTION! Circuit ribbon is attached at the top left of the camera be careful when separating the front and back of the camera after removing the 4 screws.

  6. JLGkMR5MHMffoufX

    • Carefully flip up the clip attaching the ribbon from the rear to the front and pull it out


  7. NPMeWNVt5MrHsHik

    • Carefully separate the front and back of the camera


  8. EgGsUGRGB6SQVwWM

    • You should be left with 4 large pieces, the outer case, inner lens piece, outer silver band and back case containing the LCD display.


  9. LFX1SrCZCDKrWxWx

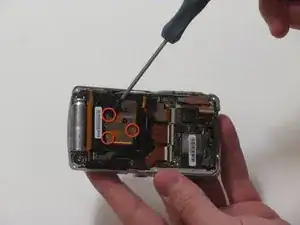

    • Using a size 0 Phillips head, remove 3 screws holding the ribbon cable that covers the back of the lens.

    • CAUTION: small loose pieces under the back lens cover

  10. Q4LtgMQkufTnfGGy

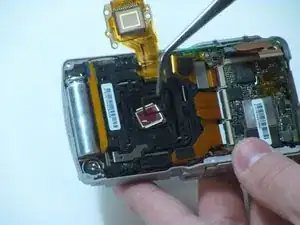

    • Using tweezers remove tiny square lens cases. There are 4 small pieces.

    • The pieces are relatively small, so becareful that they do not fall inside of the lens.

  11. YN6YVoKNPFTeVxqy

    • Remove the larger black rubber frame. Clean with condensed air.

Conclusion

To reassemble your device, follow these instructions in reverse order.
