Introduction

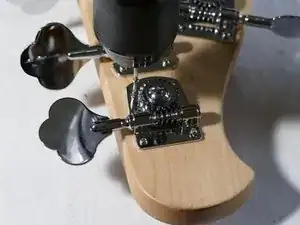

If a faulty tuning machine on your Sterling by Music Man-StingRay Ray4HH Electric Bass is preventing you from tuning - it's time for a replacement.
This guide can be used to replace non-functioning tuning keys for your Sterling. Before starting the disassembly, make sure to acquire the correct tuning keys and type of string.

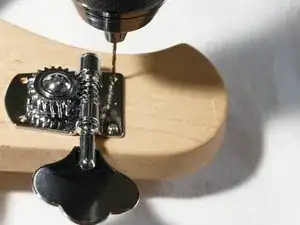

Steps 5 & 6 require the use of a drill- it is important to be aware of your environment and take caution.
-
-

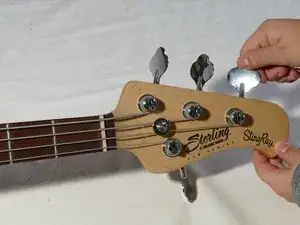

Turn the tuning key counter-clockwise to the loosen string.
-
Continue turning until there is slack in the string.
-
-
-

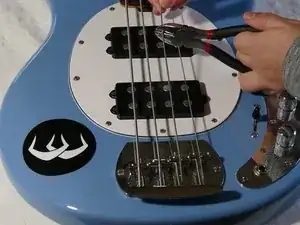

Cut the desired string with needle nose pliers.
-

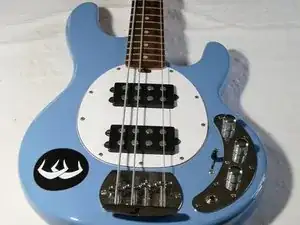

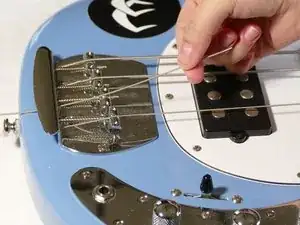

Remove the string by threading out through the bottom of the bass.
-
-
-

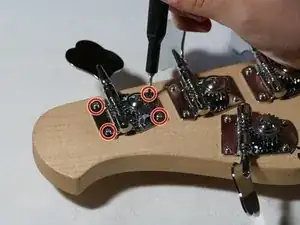

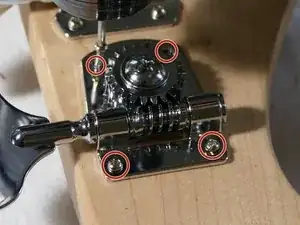

Use a Phillips #1 screwdriver to remove the four 9.53 mm screws.
-

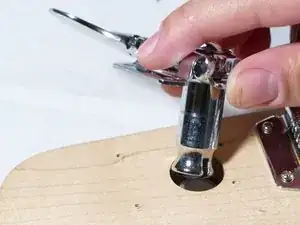

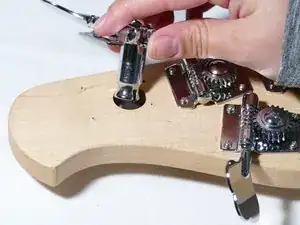

Remove the broken tuning key.
-
-
-
Adjust the direction of the replacement tuning key as need.
-

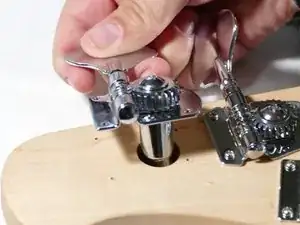

Line up the screw holes of the tuning key to the existing drill holes on the bass.
-
-
-
Thread the string through the bottom of the bass to the new tuning key.
-

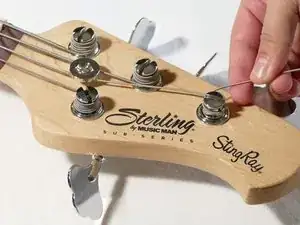

Loop the string around the tuning peg-three to four times-until tight.
-
This guide will work for any of the tuning keys on a Sterling by Music Man StingRay.
