Introduction

If you're tired of your halogen headlights or fog lights and want to upgrade to something with a better output, try installing an HID Conversion Kit.

  1. lUxfRjXMPwfvNOUH
    lUxfRjXMPwfvNOUH
    aZrlAKewZTdUMa1O

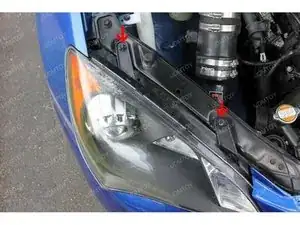

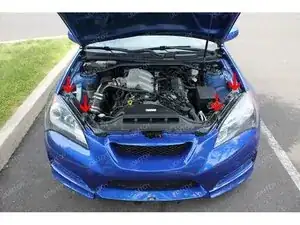

    • Open the hood.

    • Locate the back of the headlights and remove the bolts holding the headlight housing.

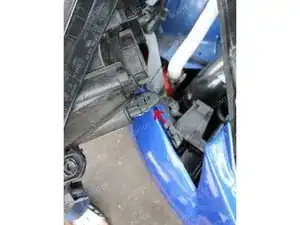

  2. HyUXBghVNyU4QytR

    • Unplug the stock harness and remove the headlights.

  3. OWAC2GqT3dBwfySe
    OWAC2GqT3dBwfySe
    QsSYrasJPnvWnObX

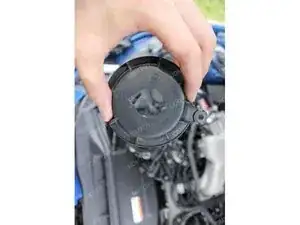

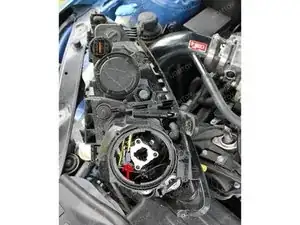

    • Remove battery negative terminal.

    • Remove headlight cover and remove factory halogen bulb.

  4. 6rAYjwaGZxKIoGtA

    • Take out the HID bulb from the plastic shell and remove the circular plastic piece.

    • Remember not to touch the HID bulb glass!

    • If you accidentally touch it, you can clean it with some rubbing alcohol.

  5. IZqyxN4VFXDI1NtB
    IZqyxN4VFXDI1NtB
    LZHJWYgEqDIOOkkx

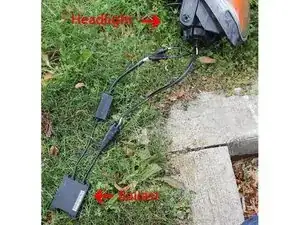

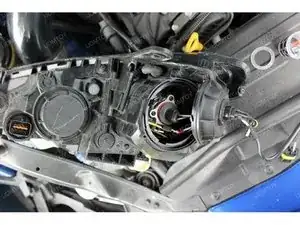

    • Screw in the HID bulb back into the headlight housing.

    • Connect the wires of the HID bulb to the ballast and then connect the HID ballast back to the stock harness.

  6. YLnOjlCtZaNhYkb5

    • Before you mount the ballast, test the HID light to make sure it lights up.

    • If not, turn the adapter wire 180 degrees.

    • Mount the HID ballast with zip ties.

  7. JDSD6Y44fNSyo3Qt
    JDSD6Y44fNSyo3Qt
    33rU6K2eYfdEh4ql
    2RTGSREiVQGU5xNJ

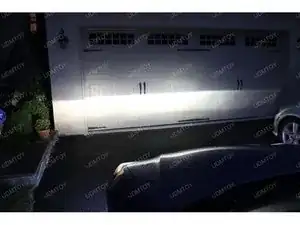

    • Put everything (like the headlight housing) back.

    • Enjoy!

Conclusion

Enjoy your new HID Conversion Kit and upgraded headlights or fog lights.
