Introduction
The screws on the brakes are tight, but it's best to use hand tools so the screws don't get stripped.
Tools
-
-

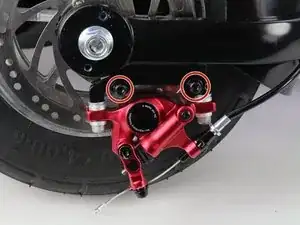

Remove the two, 23 mm Hex #5 screws holding the brake to the bike.
-

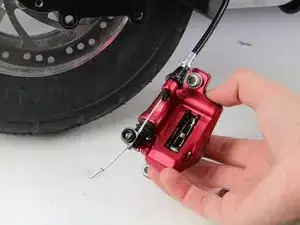

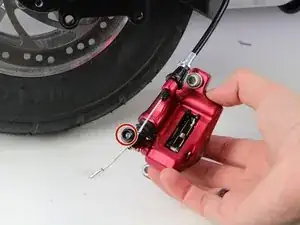

Slide the brake mechanism off and turn it upside down to reveal the screw holding the brake wire.
-
-
-

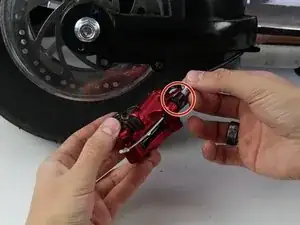

Remove the one, 14 mm Hex #4 screw pushing down the brake wire to the brake mechanism on the bottom.
-
-
-

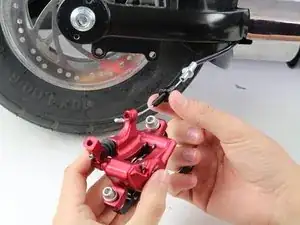

Remove the side screw holding the brake wire and mechanism together with your hands.
-

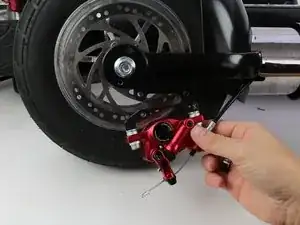

Slide the brake mechanism off from the brake wire.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
