Honda CSC29 Stator Replacement

Written By: Nicole Martinez

Comments: 2

Difficulty

Difficult

Steps

Time Required

30 minutes

Introduction

The objective of this repair guide is to instruct the reader how to remove and replace the stator in the CSC29 alternator. The stator is a series of copper windings that transfer current generated from the rapidly rotating rotor to the rectifier bridge assembly. This current eventually finds its way back into the car battery.

Tools

Step 1

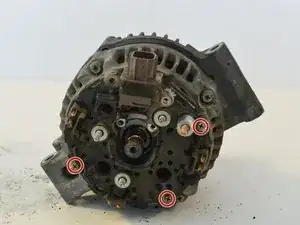

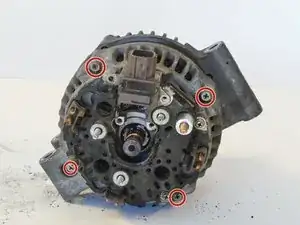

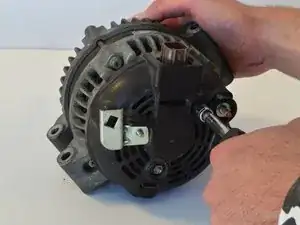

Remove 4, 7.9mm nuts using a 7.9mm socket driver head

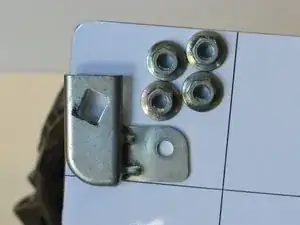

One of the nuts is placed underneath the L-Bracket. Remove the L-Bracket and the 3 circled nuts before attempting to remove the remaining nut

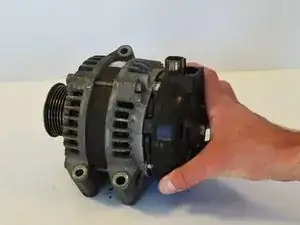

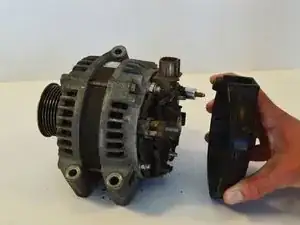

There are two covers that need to be removed from the alternator. This step describes how to remove the back cover.

Step 2

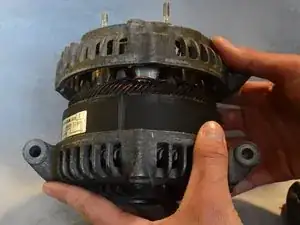

Pull cover off the body of the alternator
Once you have done this, you should be able to see the internal components of the alternator, particularly the bridge assembly that houses the rectifier, voltage regulator and brushes.

Step 3

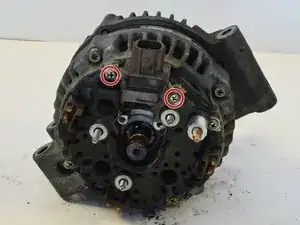

With the alternator cover removed, use a #2 Phillips screwdriver to remove the two, 6 mm screws that hold the brush cover in place.

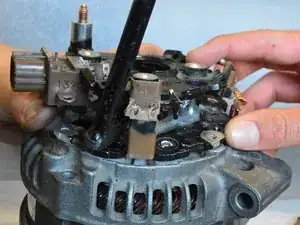

Remove the brush cover assembly from the alternator. You might need to insert a needle in the small hole to separate the brushes from the rotor. Pull it out without using much force to avoid damage.
Avoid disconnecting wires unless otherwise specified!

It’s not always so simple to pull out the brush assembly. I was able to pull it out only after I did push and drove a needle thru the small hole on the cover with some wiggling around. This helps to separate the brushes from the rotor and then pulling is easy.

Niki P - 16/02/18

Step 4

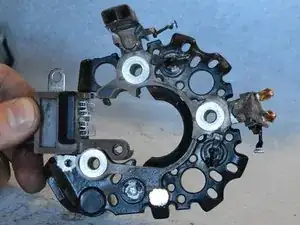

Use a #2 Phillips screwdriver to remove the two 6mm screws holding down the voltage regulator
There are three screws that attach the voltage regulator to the bridge assembly. One of these screws was removed in the previous step.

Step 5

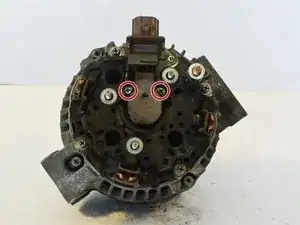

Locate and unscrew the 3, 6mm screws holding the bridge assembly in place
There are 4 screws attaching the bridge assembly to the alternator. One of these screws were removed in the previous step.

Step 6

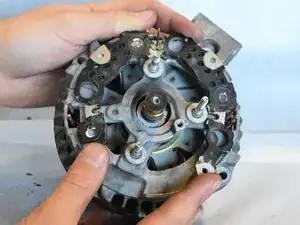

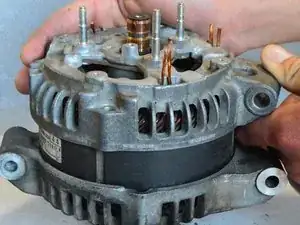

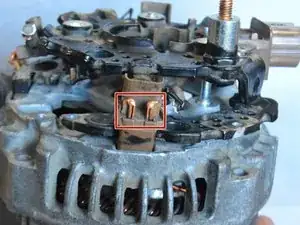

Locate the copper leads connecting the stator to the bridge assembly. There are 3 sets of 2 leads on the perimeter of the bridge, making 6 leads total.
These leads must be cut in order to remove the bridge from the alternator. These leads will have to be soldered back together on reassembly. Keep the cut as clean as possible.
Use wire cutters to cut all 6 of the leads on the perimeter of the bridge.

Step 7

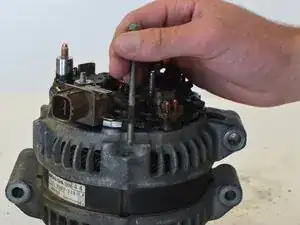

If necessary, use a pry bar to gently raise the top of the bridge assembly off the alternator
Be extremely careful with the pry bar. Excessive force will damage the bridge assembly.
Make sure the cut ends of the copper leads are straight to make bridge assembly easier to pull off.

Step 8

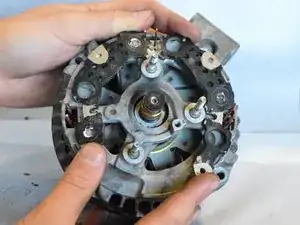

Remove the lower section of the bridge assembly
Use of a pry bar may be necessary. Be gentle.

Step 9

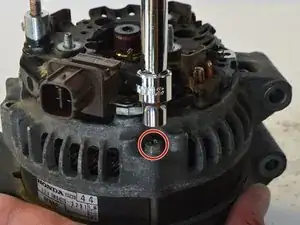

Use a Philips #2 Screwdriver or a 7.5mm socket driver to unscrew the 4, 7.5mm bolts running along the outer perimeter of the alternator

Step 10

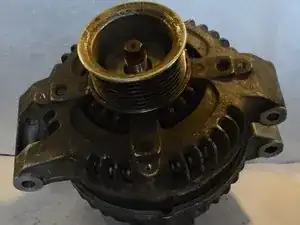

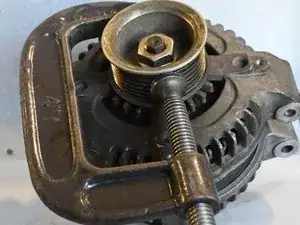

Use a c-clamp or another fixture to hold the pulley in place
Be gentle with the clamp. Excessive force will bend the pulley out of shape

Step 11

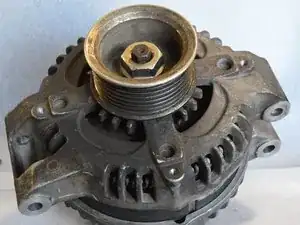

Use a ratchet with a 25mm socket to remove the 25mm hex nut from the pulley
May need to use a power ratchet, depending on how tight the fit is on the nut

Step 12

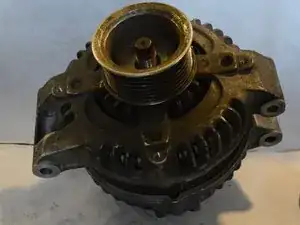

Once the nut is off, you can then remove the pulley.

Step 13

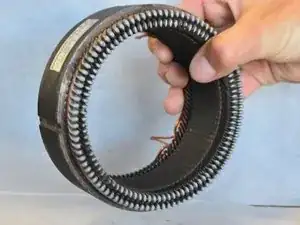

Once the pulley is removed, separate the rotor and stator. The stator is the piece with copper windings.

Step 14

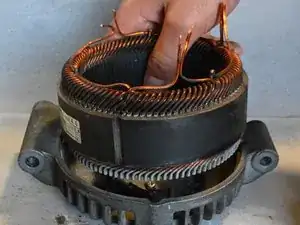

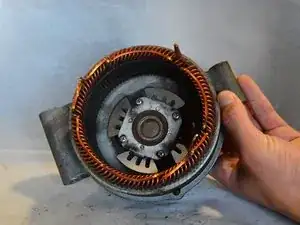

You can pull the stator out of the remaining cover and examine it.
If the stator is scratched or damaged, you will need to replace it. Look for scoring marks or cut pieces of winding.

Conclusion

To reassemble your device, follow these instructions in reverse order.
