Heyday Round Bluetooth Speaker Subwoofer Replacement

Written By: Jonathan Sotelo
  • Comments: 0
Heyday Round Bluetooth Speaker Subwoofer Replacement

Difficulty

Moderate

Steps

4

Time Required

20 - 35 minutes

Introduction

  1. rd2KGxJrfuQwZVHL
    rd2KGxJrfuQwZVHL
    2NCW11rUlnVsBYVo

    • Use a metal spudger to pry the fabric-covered top off of the speaker.

  2. senHcfHcErjecenC
    senHcfHcErjecenC
    XPt6uGAPeJpPLX5G
    DBCnuRQgPfnA6J2T

    • Use a Phillips #0 screwdriver to remove the twelve screws around the perimeter of the inner plastic shell.

    • Remove the inner shell from the back case.

    • Don't yank or pull the shell case off the bottom case. There are cables connecting the two and they could be damaged if pulled.

  3. sT2b3FlMAjUsk4hs
    sT2b3FlMAjUsk4hs
    ILogpmwXVKPZkUwB

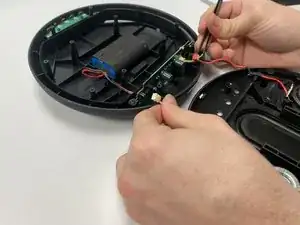

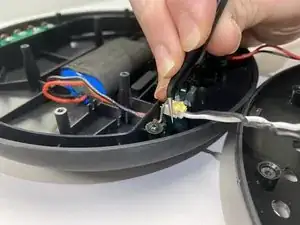

    • Use curved tip tweezers to detach the connectors of two 2-prong Aux In/Out plugs extending from the subwoofer.

  4. AkUYvLq4m1whSPhK
    AkUYvLq4m1whSPhK
    DiRK6tlHaZ5hePhH

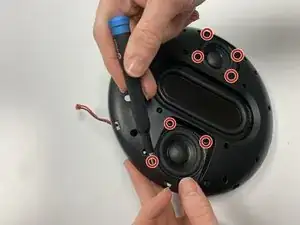

    • Use a Phillips #0 screwdriver to remove the four screws at the edge of each subwoofer to release them.

    • Remove both subwoofers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
