Health o Meter HDR743 Power Supply Replacement

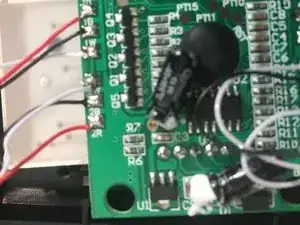

Connect a voltmeter at the power supply’s connection to the circuit board and the power supply.

If the the voltage at the power supply is incorrect, the power supply should be replaced.

Use wire strippers to cut the wired connection to the power supply.

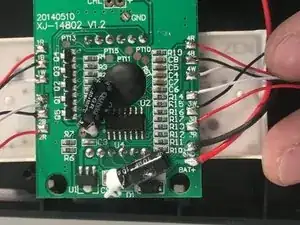

If the wires need replacing, you will need to use a soldering iron and remove the connections at the board.

Use the wire strippers to cut off the rubber ends of the power supply wires.

Use a soldering iron and solder to fuse the connections between the two wires.

Test the power supply once the wires have been reconnected.

If the Health o Meter still has power issues, check the connections between the new power supply and the board.

If no issues are found, the circuit board may need to be replaced.
