General Pipe Cleaners Drain Cleaner PMEBO 2016 Upper Feed Roller Bearing Replacement

Written By: Adam O'Camb
  • Comments: 0
General Pipe Cleaners Drain Cleaner PMEBO 2016 Upper Feed Roller Bearing Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 30 minutes

Introduction

Use this guide to replace the upper feed roller bearing in a General Pipe Cleaners Drain Cleaner PMEBO 2016.

  1. jKWlIFCSGdEIXo2f

    • Before you begin, make sure the drain cleaner is disconnected from power.

    • Use your hand to unscrew and remove the feed pressure knob.

  2. gOsdWRyjICFJcKGN

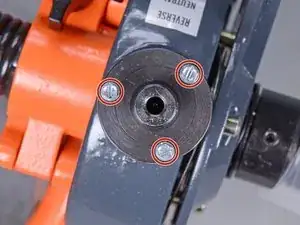

    • Use a 1/4 inch socket wrench to remove the three bolts securing the feed roller holder plate.

  3. EefBgWmJCvM4rFQ1

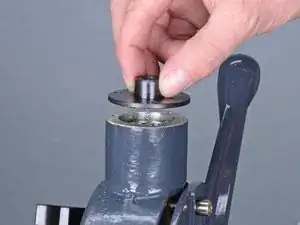

    • Remove the feed roller holder plate.

  4. U2h2e51iDTFLUalx

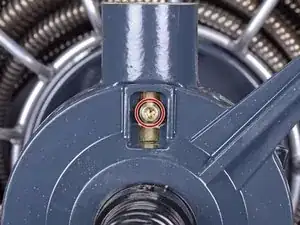

    • Use a 3/16 inch hex wrench to remove the top swing pin.

  5. GChxafo5DIDBQlwu
    GChxafo5DIDBQlwu
    D1tOgLL2HGgrvWpQ
    3IkRniilZR6yCjvs

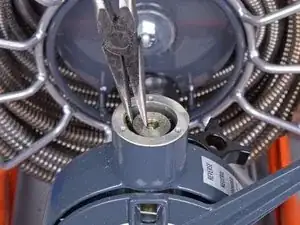

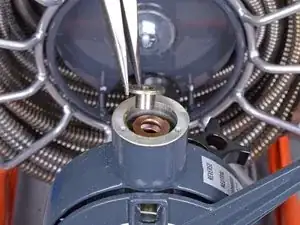

    • Use pliers to lift out and remove the pressure spring plate.

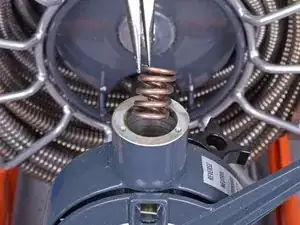

    • Lift out and remove the pressure spring.

  6. 1BJaPIKQW6OvbRrt
    1BJaPIKQW6OvbRrt
    fNsgkmOL5vNHCjXq

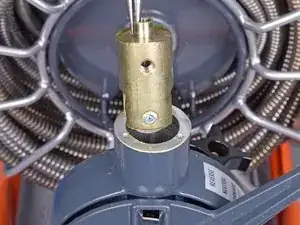

    • Use pliers to lift the top carrier straight up and out of the feed body.

    • During reassembly, make sure that the carrier is oriented so that its threaded hole lines up with the swing pin hole in the feed body.

    • During reassembly, clean the carrier and apply new grease before inserting it into the feed body.

  7. dWoA2oxVL2PvRUit

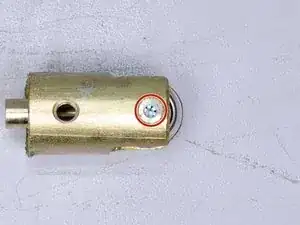

    • Use a 3/16 inch hex wrench to remove the feed roller shaft.

    • It may be necessary to insert a thin screwdriver or hex wrench into the top end of the carrier to help hold the carrier while you loosen the feed roller shaft.

  8. jEyibELERRcRU5ri

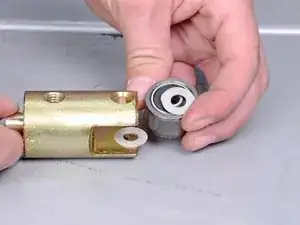

    • Remove the upper feed roller assembly, including the fiber disks on either side of it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
