General Pipe Cleaners Drain Cleaner EJB 2014 Reverse Switch Replacement

Written By: Adam O'Camb
  • Comments: 0
General Pipe Cleaners Drain Cleaner EJB 2014 Reverse Switch Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 30 minutes

Introduction

Use this guide to replace the reverse switch on a General Pipe Cleaners Drain Cleaner EJB 2014.

  1. 3s4MaRG1PeQVeIcq

    • Before you begin, make sure the drain cleaner is disconnected from power.

    • Use a Phillips #2 driver to remove the two screws securing the control box cover.

  2. y5eDMLjQc4mPxyUA

    • Remove the control box cover.

  3. uL2TbTb2UCOJfBnT

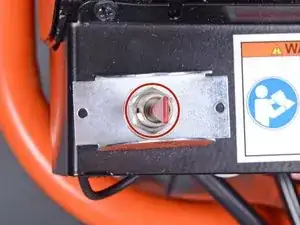

    • Use a 9/16 inch deep socket and ratchet to remove the nut securing the reverse switch.

  4. WoFCbhPLiFtINFAQ
    WoFCbhPLiFtINFAQ
    KPynPGMjxdoIVSWU

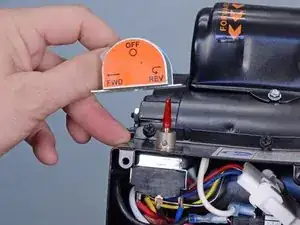

    • Remove the reverse switch guard.

  5. 1l1Ak1UpmBMac5YJ
    1l1Ak1UpmBMac5YJ
    GfpghFaxwJKQDowr

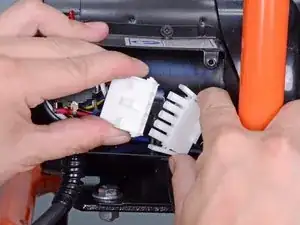

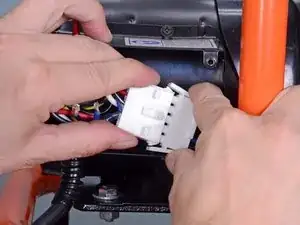

    • Squeeze the tabs on either side of the reverse switch connector.

    • Pull the two halves of the connector apart to disconnect it.

    • Take note of where everything is connected in the control box before disconnecting anything else.

  6. CagqQXI1RJDLfbOi
    CagqQXI1RJDLfbOi
    ehcTXjXnNgsWFgBp

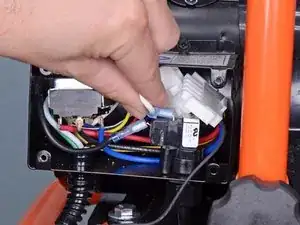

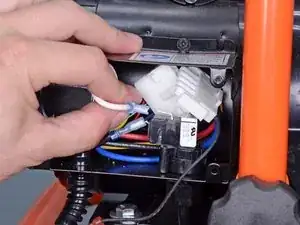

    • Pull the white cable straight off of its spade connector on the power switch diaphragm.

  7. 3X3CHZ6V2TfNCD1H
    3X3CHZ6V2TfNCD1H
    GQ3ZL4wASpMlqHcp

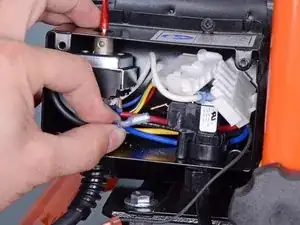

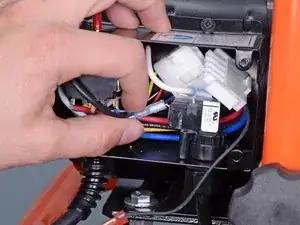

    • Pull the black cable straight off of its spade connector on the power switch diaphragm.

  8. NMZwtuKrWyWKOjIN
    NMZwtuKrWyWKOjIN
    BIGIvO1IFMXLbUnU
    HpbWriePKD1t1DNH

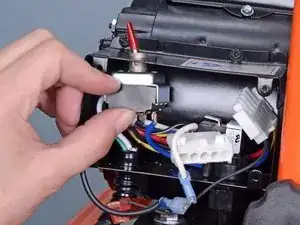

    • Slide the switch assembly down out of its hole in the control box and pull it out of the control box.

    • Be careful not to snag the switch on any cables during removal.

Conclusion

To reassemble your device, follow these instructions in reverse order.
