GE Refrigerator Rear Access Cover Removal

Written By: Bill Gilbert
  • Comments: 0
GE Refrigerator Rear Access Cover Removal

Difficulty

Easy

Steps

3

Time Required

2 - 3 minutes

Introduction

The rear access cover provides access to the compressor, condenser, condenser fans, and solenoid water valve.

  1. SaOfLbkeAxgmho5g

    • Unplug your refrigerator before you begin your repair.

    • If you are testing or repairing the following items, you may also need to shut off and disconnect the water supply:

    • Condenser fan motor

    • Compressor motor and thermal overload device

    • Water supply valve assembly

  2. SDlrMP1DAYQgcYIf

    • Use a 1/4" nut driver to remove the screws securing the rear access cover.

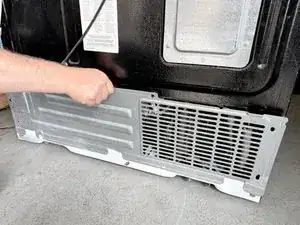

  3. jhDFpnsyYLGB4bWw
    jhDFpnsyYLGB4bWw

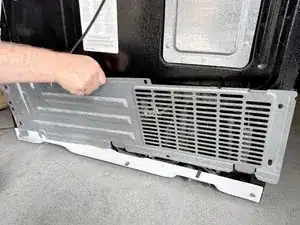

    x2MBI4Gvnbex2J1x

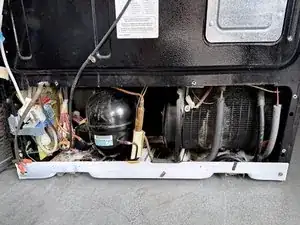

    n1KLDSaBsA2IIVCp

    • Lift the rear access cover up and slightly outward

    • Remove the access cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our  Answers community for help.
