GE A1050 LCD Replacement

Written By: oldturkey03
  • Comments: 0
GE A1050 LCD Replacement

Difficulty

Moderate

Steps

4

Time Required

15 - 30 minutes

Introduction

The repair of the LCD is straight forward. No special skills or knowledge are required.

  1. IbhvdNwIuEYRN13P
    IbhvdNwIuEYRN13P
    YYJZLpURjWZq1eqG
    W1FSeYHTTw3uwoUU

    • Remove the batteries, hand strap, and memory card if so equipped.

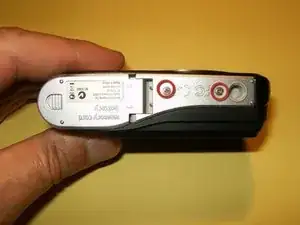

    • Remove the two Phillips screws from the bottom.

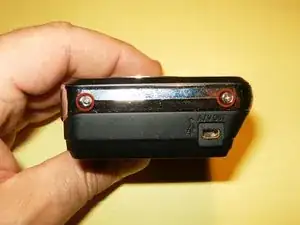

    • Remove the two Phillips screws from the left side.

  2. omepymbxNaokdLcF
    omepymbxNaokdLcF
    TWq2HX4AmRUUGuog
    3wMVxVoMA1GFebYr

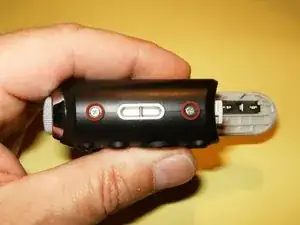

    • Remove the two screws from the right side.

    • The two screws from the left side are shorter than the ones from the right. Keep those separated.

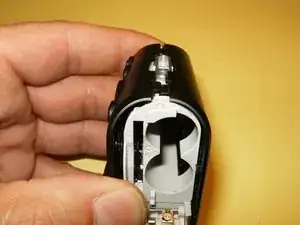

    • Start splitting the case from the battery compartment to the sides. No special tool is needed to split the case.

  3. FpZOuHhZWBDnCW1B
    FpZOuHhZWBDnCW1B
    iPkK3D3RMflPMR1A
    qnGTDY6IQyAfRfU6

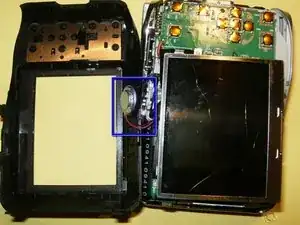

    • Do not remove the back side of the case, just flip it over. The speaker is connected by wires to the main body, but positioned in the back case.

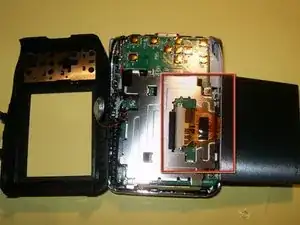

    • Flip the LCD to the bottom. You can not yet remove it, because it is still attached to the board.

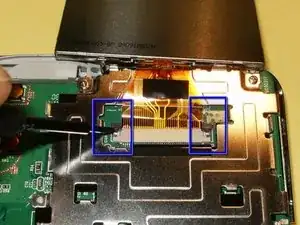

    • The LCD cable is held into the connector via some compression clips. Move both ends carefully away from the connector, toward the LCD.

    • The clips only move about an 1/8 of an inch. Be careful not to use too much force.

  4. GarREZJ2I6CpYCRu

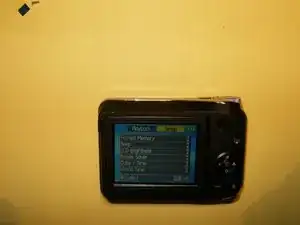

    • After exchanging the LCD for a new one, and after reassembling your camera, you should have a working LCD.

Conclusion

To reassemble your device, follow these instructions in reverse order.
