Introduction
Although a cracked screen would be hard to manage with this device, replacing the LCD screen is relatively easy.
-
-

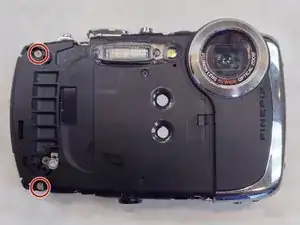

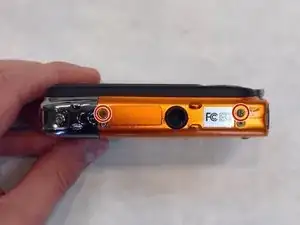

Using a 1.5mm Hex Screwdriver, remove the two 3.0 mm hex screws on the front of the camera.
-
Using a Phillips #00 screwdriver, remove two 3.0 mm screws on the bottom of the front face.
-
-
-
Using a Phillips #00 screwdriver, remove 3.0 mm screws on the bottom of the camera closer to the back.
-
Using Phillips #00 screwdriver remove two 3.0 mm screws on the back of the camera. This will remove the eyelet for the camera strap and the rear cover.
-
-
-

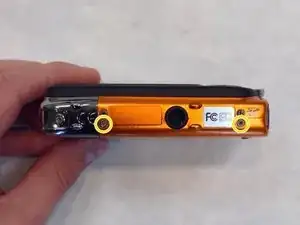

Using a 1.5mm Hex screwdriver, remove 3.0 mm hex screw on top edge of silver panel.
-

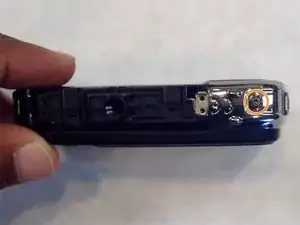

Using a Phillips #00 screwdriver, remove the 3.0 mm screw on bottom edge.
-

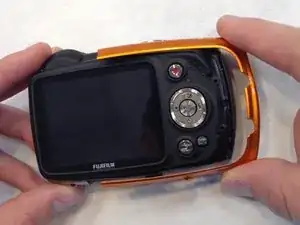

Once both screws are removed the silver side casing will slide off.
-
-
-
Unlatch the four clasps located on each side of the camera by hand.
-

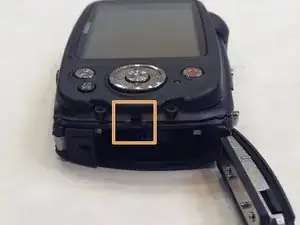

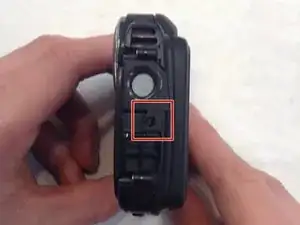

The fourth clasp is concealed by the battery door. To reach the clasp see Fujifilm XP20 Battery Replacement for instructions.
-
-
-

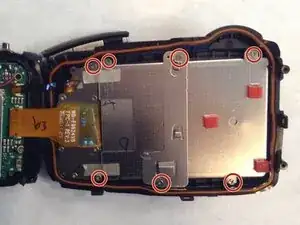

Using a Phillips #00 screwdriver, remove the seven 3.0 mm screws.
-

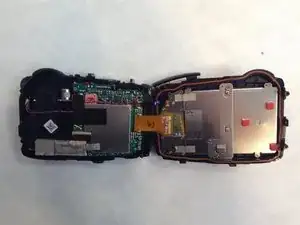

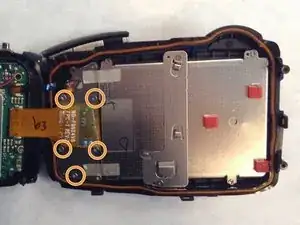

Remove the remaining five 3.0 mm screws which hold the rear case and the control panel together.
-

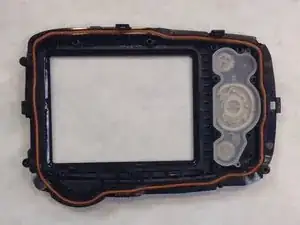

The rear panel is now free from the camera.
-
-
-

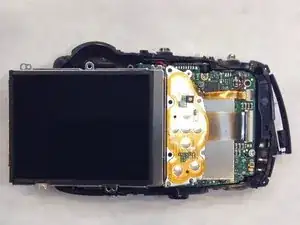

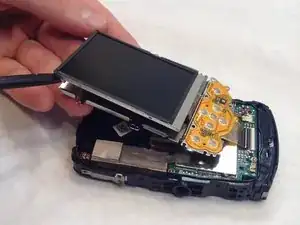

Take the spudger and wedge it in between the screen and the frame.
-
Slowly make your way around the screen with the spudger just enough to separate the screen from the frame.
-
-
-

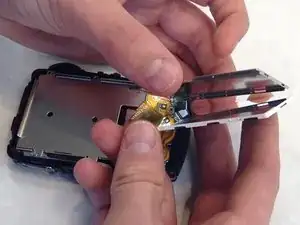

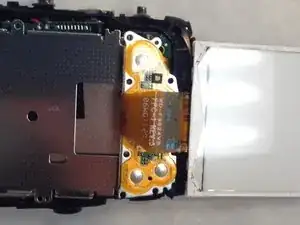

Take the spudger again and wedge it in the thinner frame to pry the LCD screen from the frame.
-
Make your way around with the spudger just enough to separate the screen and frame once again.
-
-
-

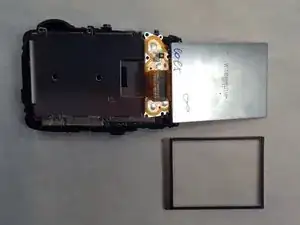

Take the spudger and wedge it very carefully between the LCD screen and the very thin and fragile frame.
-
To reassemble your device, follow these instructions in reverse order.
