Floor Pump Gauge Replacement

Written By: iRobot
  • Comments: 0
Floor Pump Gauge Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

Replace the pressure gauge in your classic floor drive pump if the gauge appears to be inaccurate, is malfunctioning or has stopped working all together.

  1. XfxjMSIdmOpi3xvD
    XfxjMSIdmOpi3xvD
    DDyQOE4HEk4OHJUA

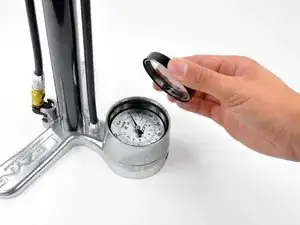

    • Using a flat head screwdriver, pry up an edge of the gauge cover.

    • Remove the gauge cover.

  2. 3J2QBDDRexsDdt5a
    3J2QBDDRexsDdt5a
    H46SBWuYoEpZeSoI
    6QlmgAaRXHyNcHPW

    • No parts from the old gauge will be re-used, so there is no need to attempt to preserve the parts. However, be careful not to damage the gauge housing.

    • Pry up a corner of the gauge face plate.

    • Use pliers to pull off the gauge face plate.

    • Be careful not to cut yourself when prying off the face plate, as the edges are sharp.

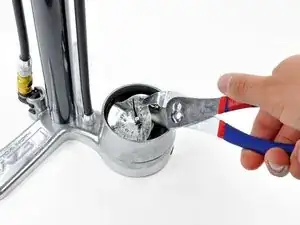

    • Use pliers to pry out the internal gauge mechanics.

  3. xYH1ImnRxFDSmRvy
    xYH1ImnRxFDSmRvy
    CCVZoeKIjkYIQSIJ

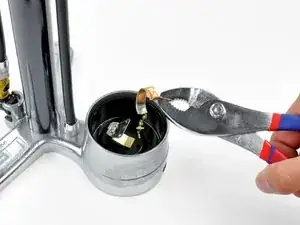

    • Using pliers, grip the exposed brass piece and unthread the gauge by rotating it counter-clockwise.

    • Pull the gauge out of its housing.

  4. FxtEvPhssbfQhc1j
    FxtEvPhssbfQhc1j
    6GGXxFoo4p6AiCEs

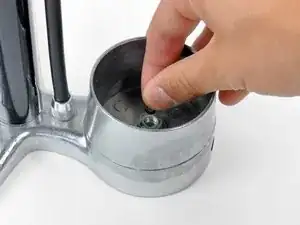

    • Remove the O-ring at the bottom of the threaded hole.

    • Place a new O-ring into the hole.

  5. ZktnuMN2iI1v62LV

    • Apply medium-strength Loctite (green, 290) to the threads on the new gauge.

    • Apply a thin layer, but make sure it covers all the threads.

  6. kaqQ2qU4PmNvHjJh
    kaqQ2qU4PmNvHjJh
    4UcybZHwRihUIIcf
    aghIFcUbuIPtUWXH

    • Thread the new gauge into the floor pump by turning it clockwise in its housing.

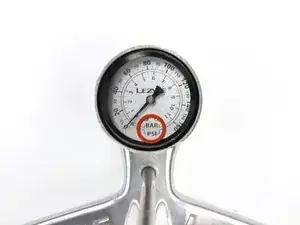

    • Thread the gauge until it is snug and the BAR/psi markings are aligned with the pump body.

    • Gauge performance will not be affected by its position, so long as it is snug.

    • Allow at least 30 minutes for the thread locker to set.

    • Test the pump to its highest rated pressure and listen for leaks. If you can hear leaks from the gauge, tighten it.
