Flip Video Lens Replacement

Written By: Elizabeth
  • Comments: 0
Flip Video Lens Replacement

Difficulty

Moderate

Steps

13

Time Required

No estimate

Introduction

This guide will show you how to replace the camera lens of your Flip Video.

  1. Ho4uFBDNIkyCZtQV
    Ho4uFBDNIkyCZtQV
    eVGCIvVeuhEVOHRn

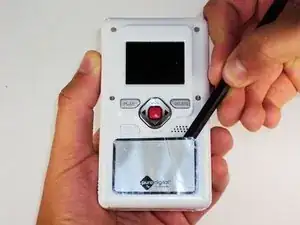

    • Turn off the device and take the batteries out.

    • Remove metal sticker under the LCD screen with a spudger.

    • This may require a large force to pry off the glued sticker.

  2. X2NY14CT5NDa1ktm

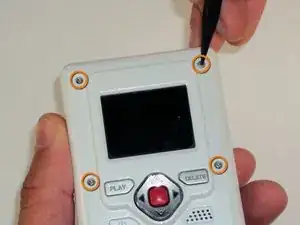

    • Remove the 4 gray screw caps with the spudger. These cover the screw heads and protect from dirt or grime.

  3. E5LMDkpmemLgy5YB
    E5LMDkpmemLgy5YB
    Q2hhLQMQOf3xEngV

    • Remove the 5 10mm screws with the #00 Phillips screwdriver. These connect the back of the outer shell to the front of the outer shell.

  4. V2W6bsFSKFeO32aN

    • Open battery door. This can be done by gently depressing and sliding the battery down downward.

  5. vBKAeCXUOCJpNOfj

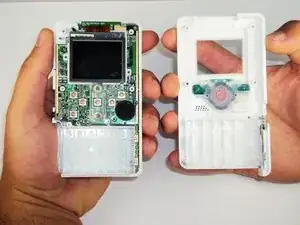

    • Use the spudger to separate outer shells.

    • The spudger must be inserted between the shell halves to pry the edges apart.

    • Slowly work around the outside to separate the halves.

  6. N2Ga61MPUgfwNM6l

    • Remove the 3 5mm screws securing the circuit board to the front shell with the #00 Phillips screwdriver.

  7. cPSxNiaVULNSZt6x

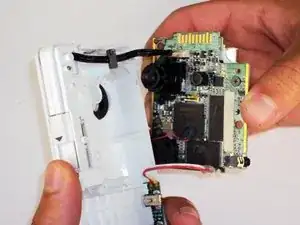

    • Slowly lift the left side of the circuit board.

    • Do not attempt to remove the circuit board completely yet. It is still connected to the device.

  8. X6XfrRXmffRwIYuC

    • Disconnect the USB port cable from the back side of the circuit board.

  9. OLYDTmPrPL2skQBw

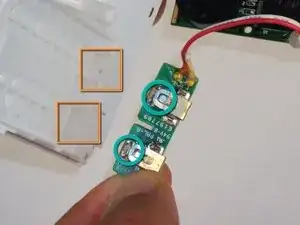

    • Slide out the battery contacts.

    • Battery contacts

    • Slot where battery contacts were located

  10. gM2xB1llbBq3HWUg

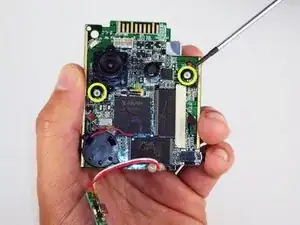

    • With the LCD screen facing away from you, remove the 2 bronze 3 mm screws securing the LCD using the #00 Phillips screwdriver.

  11. PDCMX4UydiMRDlHq

    • Flip over the circuit board and unlock the two black tabs on the ribbon connector by sliding them upwards.

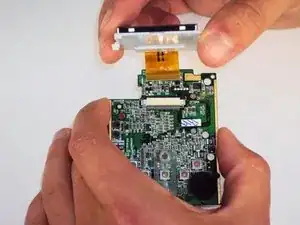

  12. xTcdU4G4BuLkRP11

    • Gently pull out ribbon cable.

    • If the ribbon cable does not come out easily you may not have fully unlocked the ribbon cable connector in the previous step.

    • The LCD screen is now removed and can be replaced.

  13. 6LqP3TUexkwP3Dyy
    6LqP3TUexkwP3Dyy
    LBbQwahVMtIGHbIM

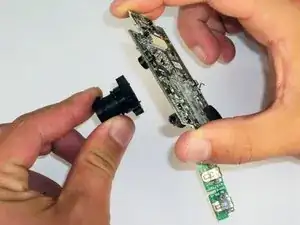

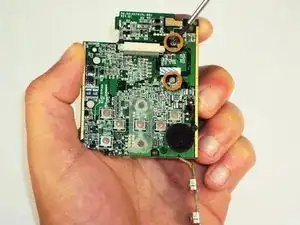

    • Flip over circuit board so the ribbon connector is facing up.

    • Remove the 2 stainless steel 3mm screws securing the lens to circuit board with the #00 Phillips screwdriver.

    • The lens can now be removed and replaced.

Conclusion

To reassemble your device, follow these instructions in reverse order.
