Fixing a AcuRite Intelli-Time Alarm Clock Faulty Alarm

Written By: Nicholas Roppolo
  • Comments: 0
Fixing a AcuRite Intelli-Time Alarm Clock Faulty Alarm

Difficulty

Moderate

Steps

7

Time Required

15 minutes

Introduction

  1. NAKKmZZLqaSKXe2H

    • Flip device upside down and remove the 4 foam pads at each corner.

    • Remove the 4 screws using a Philips Screwdriver.

    • Gently lift the case off of the body and set down in a safe place.

  4. gXFmwJUUpAZclJey

    • Unscrew the 5 screws in the base circuit board.

  5. VTrDb2foa6GOeUx4

    • Use the tweezers to slightly lift the circuit board, allowing the cylindrical alarm piece to slide out.

  6. IJVve5MSmskyRCWQ

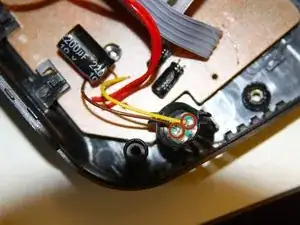

    • Check if the wires are secured.

    • If they are not attached, you may re-solder it together. If they are attached, that means it is a faulty alarm and should replace it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
