Introduction
Use this guide to remove the evaporator cover on your Whirlpool side‑by‑side refrigerator. This will give you access to the evaporator fan, the defrost heater and other items.
Tools
-
-

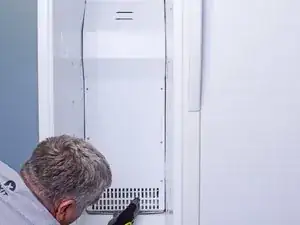

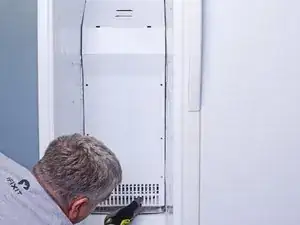

Use a Phillips screwdriver to unfasten:
-

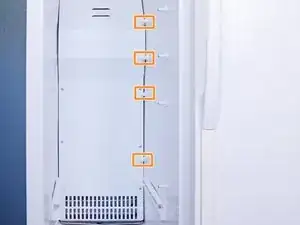

The post screws
-

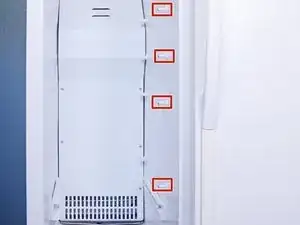

The bracket screws
-

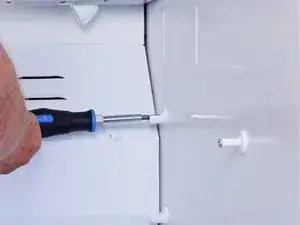

The bin rail screws
-
Remove the posts, brackets, and rails.
-
-
-
Note that the mounting holes are square.
-
There is a very shallow boss on the back of those parts that corresponds to the square holes.
-
-
-

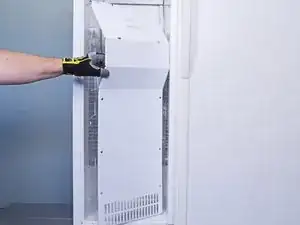

Lift the evaporator cover from the bottom edge to unfasten the two tabs near the top of the evaporator cover.
-
Pull the bottom edge of the evaporator cover outward and slightly downward toward you.
-
-
-
Continue to pull the bottom edge of the evaporator cover outward toward you.
-
Remove the evaporator cover.
-
To reassemble your device, follow these instructions in reverse order.
