Introduction
If the alarm on your Equity Alarm Clock 13014 is not going off, use this guide to replace the alarm switch.
The alarm switch is a small lever that is flipped, at the set time of the alarm, to activate an internal circuit which in response triggers the alarm to sound. A faulty alarm switch will not activate the internal circuit therefore, never triggering the sound.
Step 5 requires knowledge of basic soldering to detach a wire.
Here is a helpful video on basic soldering: How To Solder and Desolder Connections
-
-

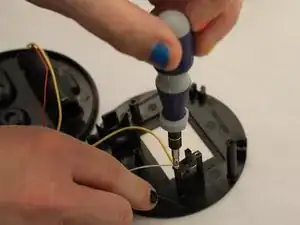

Use a Phillips #1 screwdriver to remove the small screw located above the alarm switch.
-

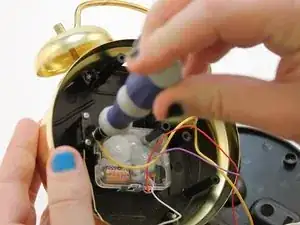

Remove the small screw located below the alarm switch as well.
-
-
-

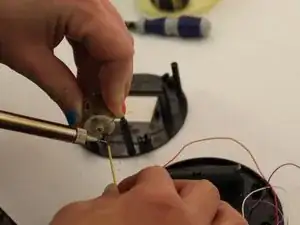

Place the end of the soldering iron on the end of the wire connected to the copper cylinder to detach the wire.
-
To replace the alarm switch, attach one end of new alarm switch wire to the copper cylinder.
-
Use a Phillips #1 screwdriver to reinstall the switch screws.
-

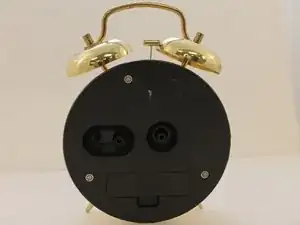

To reassemble your device, follow these instructions in reverse order.
