Engine air filter replacement

Written By: AntonioTwingo
  • Comments: 0
Engine air filter replacement

Difficulty

Easy

Steps

5

Time Required

10 minutes

Introduction

Applicable to all engines (H4D and H4Bt).

Replace every: 20,000km or year. It should be replaced earlier if driving in dusty environments.

A clogged engine air filter may impact fuel economy: it will create more resistance and therefore, increase the pumping losses.

Note: recommendations are given according to the French RTA's (Revue Technique Automobile) maintenance plan, matching Smart 453's maintenance plan in this case.

  1. WQHMMxE3KqqVP2Mo

    • Open the trunk.

    • Put aside the trunk carpets.

  2. dd4LWaGKmvdoHxh2

    • Unscrew the 6 T50 screws by hand or using a wrench and a socket.

    • Lift and put aside the engine hood.

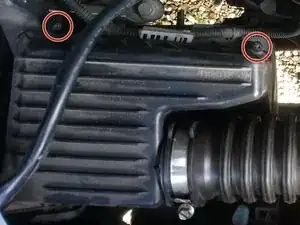

  3. sV3voLdPpmdtXvDa
    sV3voLdPpmdtXvDa

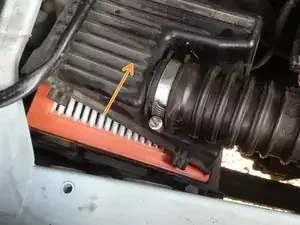

    MneNvxF2KMITMJrE

    • Unscrew the 2 Torx T25 screws.

    • Disglog the air filter lig by slightly pushing/pulling it forward then lifting it.

    • Extract the used air filter.

    • Dust off the air box from any debris residing in it.

    • Optionnal but recommended: proceeed to a throttle body, MAP sensor and air manifold thermometer cleaning (see other tutorials).

    • Install the new air filter.

  5. yJADmlX3c1d1cuht
    yJADmlX3c1d1cuht

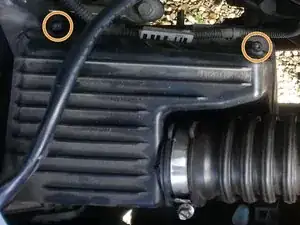

    VJQVrus24vWOsBXC

    • Replace the lid by sliding the two notches.

    • Screw back the two T25 Torx screws while maintaining a slight pression on the lid.

Conclusion

Congratulations ! You replaced your engine air filter
