Dyson DC14 Power Cord Replacement

Written By: Donald Percivalle
  • Comments: 10
Dyson DC14 Power Cord Replacement

Difficulty

Moderate

Steps

5

Time Required

15 - 20 minutes

Introduction

This guide will show you the steps necessary to replace the power cord on your Dyson DC14 vacuum cleaner.

  1. QxQUXxqkNMxXbhZK
    QxQUXxqkNMxXbhZK
    1gK1mxjAoQZaEfFC

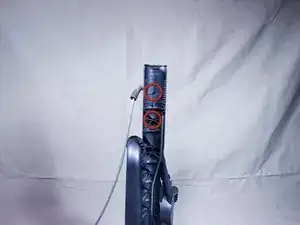

    • Start with your Dyson DC14 unplugged, standing upright and facing towards you.

    • Remove the canister from the vacuum.

    • Disconnect the telescopic vacuum wand.

    • Remove the two T15 Torx screws securing the switch cover to the vacuum.

  2. UInNv1xr1IqkSOtp
    UInNv1xr1IqkSOtp
    vynyDo6YtmM2Ahix

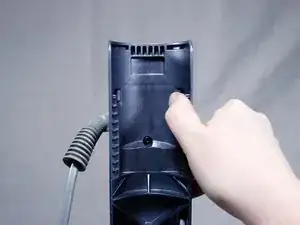

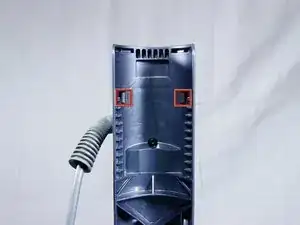

    • Push outward on the two plastic clips that secure the switch cover to the vacuum.

    There are also two screws ( one of which can been seen on the photo and another a few inches below ) that need to be removed BEFORE pushing outward on the plastic tabs.

    martyn.lockhart -

    There is a third clip below the lower screw.

    Clive Street -

  3. gZLVm4ODanyXRJru

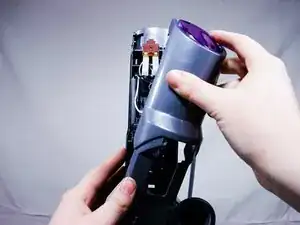

    • Remove the switch cover from the vacuum.

    • The purple switch button may separate from the rest of the switch cover.

  4. lYvVu6FWHRLDfESw

    • Holding them by their white plastic coverings, firmly pull the two wires from the power switch.

    • Be sure to grip the wires from their attached connectors. Pulling directly on the wires could damage your vacuum.

    • The terminals will only fit one way during reassembly. Only one of the wires is long enough to reach the far terminal of the switch.

    I can’t unplug the old starter. It seems stuck. What am I doing wrong?

    Jane Wells -

    I can’t unplug old starter from dyson dc14. Seems stuck. Help please

    Jane Wells -

  5. lWQQWRTHXqcG3BiY

    • Remove the other terminal for the power cord that connects to the terminal below the power switch.

    • Holding them by their connectors, separate the remaining wire of the power cord from the internal power cable.

    Love this repair guid

    Justin DePascale -

Conclusion

To reassemble your device, follow these instructions in reverse order.
