Introduction
Part # INR18650-13P
-
-

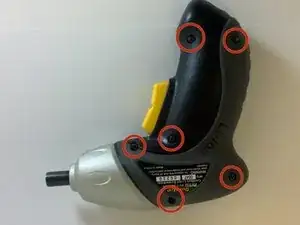

Remove the six 13mm case screws with a #0 phillips screwdriver.
-

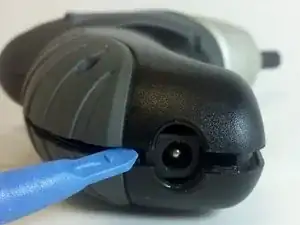

Separate the screwdriver housing with a plastic opening tool.
-

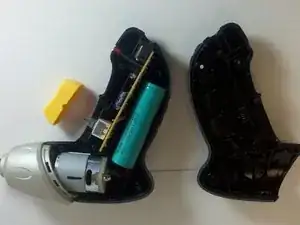

Remove battery casing half to expose screwdriver internals.
-
-
-
Locate battery
-

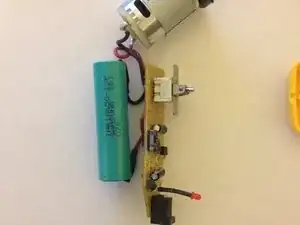

Remove battery, printed circuit board, LED, and motor assembly from screwdriver casing.
-
-
-

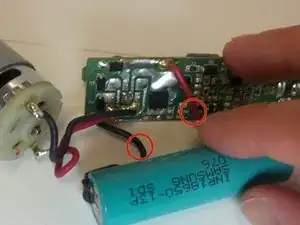

Using side cutters, cut the red and black wires connecting the battery to the printed circuit board just after the shrink wrap tubing.
-
Strip the ends of the wires attached to the printed circuit board 1/4 inch above the ends of the cut wires.
-
Solder the new battery to the stripped wires attached to the printed circuit board.
-
Wrap the newly soldered connections with electrical tape.
-
To reassemble your device, follow these instructions in reverse order.
