Dual BT 10 Mainboard Disassembly

Written By: Skyfighter
  • Comments: 0
Dual BT 10 Mainboard Disassembly

Difficulty

Moderate

Steps

8

Time Required

30 minutes

Introduction

This guide helps you dissasembling the Dual BT 10 Bluetooth Speaker to get to the mainboard for further troubleshooting and repairs.

In my case, I needed to repair the ON/OFF switch and found some difficulties while dissasembling the device without damaging it. This guide therefore should help you with the disassembly.

Tools needed:

  • Philipps head screw driver
  • Thin blade (cutter knife / exacto knife / etc.)

  1. HOsB6MGFRoAcGS4u
    HOsB6MGFRoAcGS4u
    KTEobKxJhWwor4rx
    TalmVFuXu5ZvbwFH

    • Unplug the device if needed and put the power switch into the "OFF" position.

    • Turn the device upside down

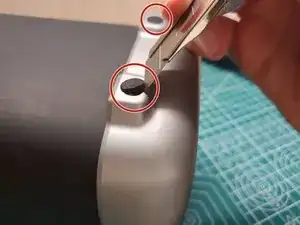

    • Remove the two foam feet at the front end of the speaker (the end with the buttons)

    • Unscrew the two screws revealed by the foam pads

  2. CoygUJOKruGtPaCs
    CoygUJOKruGtPaCs
    UVThfYwPb5ZeoAeG
    TZoxeSQqcZLrWXwN

    • Turn the device in its normal position (standing on the foam feet)

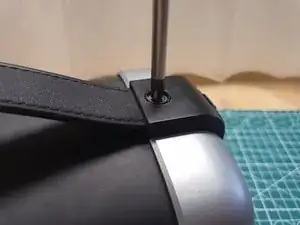

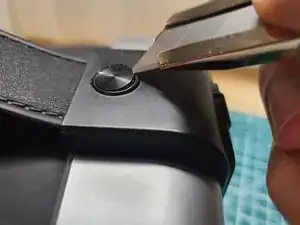

    • Remove the screw cover using a thin blade at the front end of the device (the end with the buttons)

    • Unscrew the screw and remove it together with its plastic seating

  3. FPbh1YVEFOSWsG2M
    FPbh1YVEFOSWsG2M
    igm5KC2MIj2VTeN1

    • Gently pull the rubber strap to remove it from the silver front housing

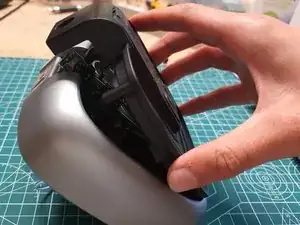

    • Pull the silver front housing from the main body of the device

    • Do so gently as some cables are still connected inside the housing

  4. 4WZaZTpVV2rse13e
    4WZaZTpVV2rse13e
    inLbCEKELDXbKhp4

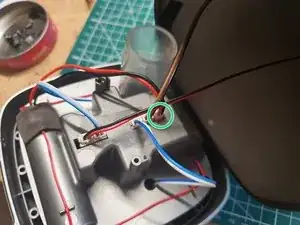

    • Disconnect all cables:

    • Take a picture of how everything is plugged in to make reassembling easier

    • Disconnect the battery first (fat red/black cable, red socket)

    • Disconnect the two front speakers (blue/white cables)

    • Disconnect the Subwoofer and LED cable (brown/black, red/black cables)

  5. SKTjpGkSSSNJPyNX

    • Remove the red antenna wire by loosening it from the marked plastic taps

  6. S3LDbrtsSyHDGkxM
    S3LDbrtsSyHDGkxM
    fbpyCoFldOvglWHF
    aOhuJrvHRyqq1PWG

    • Remove the four screws holding the front mesh

    • Separate the black plastic from the silver part

    • There is a cable connecting both parts! Be careful.

    • The mainboard is not screwed in place and will be loose after this step

    • Disconnect the brown cable from the small PCB to fully remove the black plastic

  7. YTWJwobxfyZvcrPh

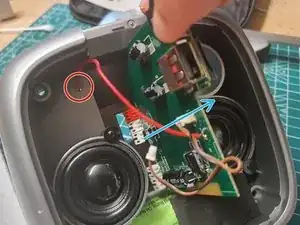

    • Pull out the main board from the assembly

    • Carefully feed the antenna wire through its small hole if needed

  8. XHMHk3WqrdEDhVUD

    • To reassemble the device, follow all steps in reverse order

    • When reinserting the motherboard, be careful to place it inside the plastic guides in the black plastic / mesh cover

    • When pluging in all cables, it is recommended to plug in the battery last (thick red/black cable, red socket)

Conclusion
