Disassembling Epson PPC650 Replacing Flash

Locate the silver power button. Gently slide the button to the middle section labeled "off" to shut down camera.

Remove the batteries from the battery compartment located on the underside of the camera.

Remove the SD card from the compartment located on the flat, left side of the camera.

Remove the two screws on the rounded side of the camera wisdom.

Remove the three screws on the flat side of the camera.

All of the silver screws go into the side of the camera that is silver.

All of the black screws go into the side of the camera that is black.

Remove the four screws from the bottom of the camera.

All of the silver screws go into the side of the camera that is silver.

All of the black screws go into the side of the camera that is black.

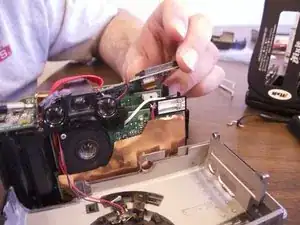

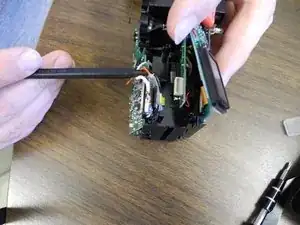

Separate the front and the back pieces of the cameras plastic casing using a spudgerm here.

WARNING: When pulling the front plastic casing, be careful of the wires that are connected to the aperture control.

Use minimal force so that the plastic casing does not break.

When separating the small silver sliding, indicator for view/off/playback may fall out.

The plastic viewing window located on the top of the camera may also become lose and fall out.

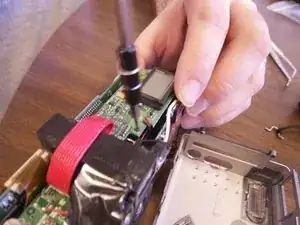

Optional: Remove two black screws from top of camera on the flash side for more working space.

Remove clear rubber band holding flash in line with wiring.
