Dexter wire angle grinder 800W - 800AG2-125.5 Replacement power cable

Written By: Céline Chemineau
  • Comments: 0
Dexter wire angle grinder 800W - 800AG2-125.5 Replacement power cable

Difficulty

Easy

Steps

7

Time Required

5 minutes

Introduction

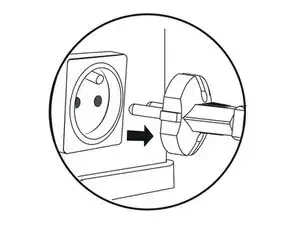

  1. G2t4mvZxOlblGQLZ

    • Before starting, remember to disconnect the outlet from the mains.

  2. sHcBdiVQaDCsYCLl
    sHcBdiVQaDCsYCLl
    tYxqAtkOy1ZxfmiL

    • Remove the side handle and the protective cover.

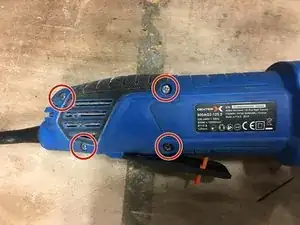

  3. GvAH41CWNDNsDTIk
    GvAH41CWNDNsDTIk
    5HMIth53fwyGcq2V

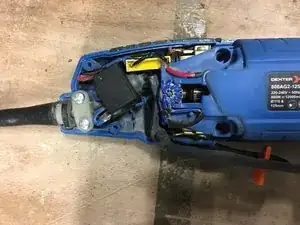

    • Unscrew the 4 screws to open the machine.

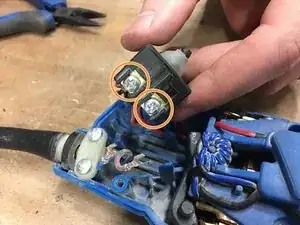

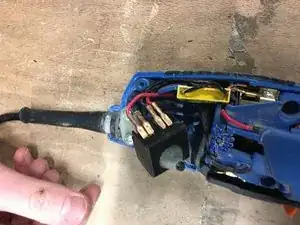

  4. gkfY5Rp6r4IIXCMk
    gkfY5Rp6r4IIXCMk
    aPaYKCAXNZUhSHMR
    jYjRS4I1Og4aOOGp

    • Remove the switch from his housing in order to have access to it.

    • Unscrew the two screws to disconnect the cables.

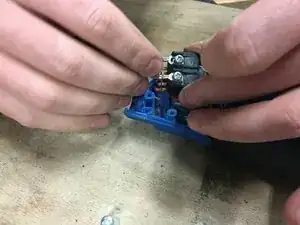

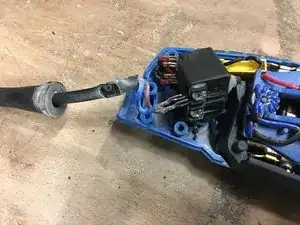

  5. GWwRWnQoedyO6VxJ
    GWwRWnQoedyO6VxJ
    xgZOVxee22Xe6LHE
    tKlfK5EiHKC4Uqoo

    • Replace the cable and reconnect the cables to the switch.

    • Be careful to put the sheath back between the two studs.

  6. BQIvxfKAAi1KHK4y

    • Before closing, check that no cables are blocked.

    • Screw the 4 screws to close.

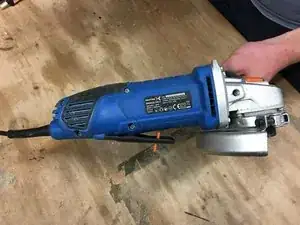

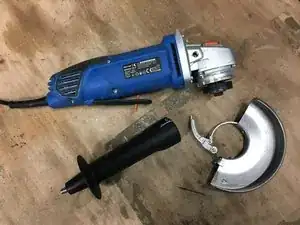

  7. viPrcek11MUtVwiC
    viPrcek11MUtVwiC
    Mot5hsnY3OINRaI3

    • Replace the external flange, the protective cover and the side handle.
