Dewalt Nailers DCN680D1 2018 Driver Removal

Written By: Arthur Shi
  • Comments: 1
Dewalt Nailers DCN680D1 2018 Driver Removal

Difficulty

Moderate

Steps

12

Time Required

No estimate

Introduction

This guide shows how to remove the blade driver assembly for the Dewalt Nailers DCN680D1 2018.

  1. cVQdYFAkWBwF1jkU
    cVQdYFAkWBwF1jkU
    6QneiNayynNDJI4h
    6mAcC4BRgVw5VWPW

    • Before you begin the repair, remove the battery from the device.

  2. avdWFSfwXMkBUWeR

    • Remove the following screws securing the outer housing:

    • Twelve T10 screws

    • One 2.5 mm hex screw

    • Some of these screws are deeply recessed. You can use a flathead screwdriver to loosen these screws.

  3. kTyfgndnlOmVvetD
    kTyfgndnlOmVvetD
    CTZmEOn3CS2OeI3t

    • Lift and remove the right housing from the device.

  4. hOY6uevTVcJKlAob
    hOY6uevTVcJKlAob
    6eTkNQ4XmsNtOMK2

    • Remove the lock button from its recess.

    • During reassembly, make sure that the button is properly seated and engages the trigger.

  5. ESYp4VAAuJgV1LHD
    ESYp4VAAuJgV1LHD
    OQVoYJhVhJVkM2Yw

    • Slide the battery connector out of its recess.

  6. WKrEZMGNQHOyUjJ4
    WKrEZMGNQHOyUjJ4
    Kb6RS5EoxPTEtmRE
    bJRDYFmglPjgGWKh

    • Remove the switch board, switch, and spring from its housing recess.

    • During reassembly, use the third photo as a reference to help you set the components back in the housing.

  7. KAlCeRpEYNCR1Egm
    KAlCeRpEYNCR1Egm
    LPvpMKZhrjYcSIl3
    P5JaZeT1FgOjwYfi

    • Carefully flip the device over.

    • Remove the left housing from the device.

  8. yXxjQXoERVDTGelV
    yXxjQXoERVDTGelV
    WQuIrHQcX61fRyYy
    MWrauaHmQF3ig2GX

    • The spring under the release button has a tendency to fly out. Be careful not to lose the spring.

    • Carefully remove the release button from the device.

    • Remove the button spring from the device.

    Interesting, my stall release lever button has a totally different internal shape/latch. The entire thing was jammed...

    SCShopgirl -

  9. QQRZlUcBNVPNOXHZ
    QQRZlUcBNVPNOXHZ
    b2o3AKPHQvxcmKT5

    • Use a T20 driver to remove the two screws (one on either side) securing the back support .

  10. OODmLoR4lp4ItUhR
    OODmLoR4lp4ItUhR
    XQtDJLx2WqxTReZd

    • Loosen the two solenoid wires from the back support.

  11. 6EEo6W2QPGIdiplO
    6EEo6W2QPGIdiplO
    QGmdkoPaIE1UUIdo

    • Pull the back support straight out of the device.

  12. OOSFm4Td61kOvJiX
    OOSFm4Td61kOvJiX
    NTbOxFOP1BMlRhYa
    csqCP2cfHKUQYnwY

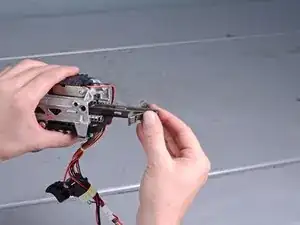

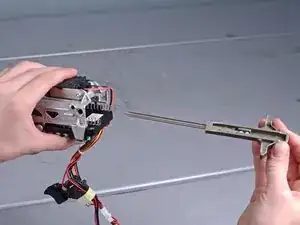

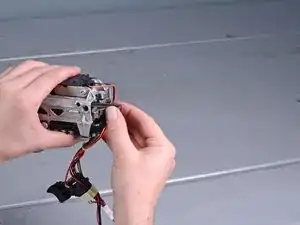

    • Grasp the driver assembly by its back and pull it straight out of the device.

Conclusion

To reassemble your device, follow these instructions in reverse order.
