Dell XPS 15 9570 Speaker Replacement

Written By: Margaret Combs
  • Comments: 5
Dell XPS 15 9570 Speaker Replacement

Difficulty

Moderate

Steps

12

Time Required

25 - 50 minutes

Introduction

This guide will walk you through the process of replacing the speakers in your Dell XPS 15 9570. If you are experiencing distorted sound, no sound output, or a blown-out speaker, this guide will help restore your laptop’s audio functionality.

During the replacement process, take precautions to avoid electrostatic discharge by using an ESD-safe tool or working on an anti-static mat.

Advanced technical skills are not require to replace the speakers, but basic familiarity with small screws and the ability to carefully disconnect components is recommended.

  1. XDM21s2U3cke3sGH

    • Make sure your device is powered off and unplugged before starting

    • Flip the device over so the base cover of the computer is facing upwards.

  2. d1TkpNtEmj1gYkSq
    d1TkpNtEmj1gYkSq
    JvcaxuB3RfDfEGdd
    XwugwAd2HEwvmXtf

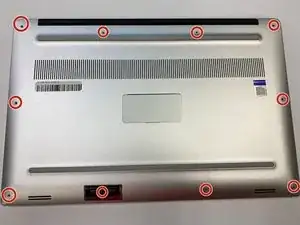

    • Using a Torx T5 screwdriver, remove the ten 3 mm screws on the back.

  3. YrsOILKZD1PRTYwJ
    YrsOILKZD1PRTYwJ
    Fe25FODYZtLlMT2f

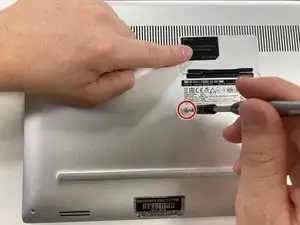

    • Flip open the system badge and with a Phillips #00 screwdriver, remove the two 8.5 mm screws.

  4. KVZHHmymMGCjCZTD

    • Lift the back cover off of the device.

  5. JUxdS4psiWRxTvZG

    • Using the Phillips #00 screwdriver, remove the four 4 mm screws holding the battery in place.

    For laptops with the larger battery, there are actually 9 screws to remove.

    nebman227 -

    My previous comment is incorrect, it is 7 screws, not 9, for the larger battery

    nebman227 -

    in the red circles wrong screws marked.

    Eugenio Rodriguez -

  6. LQBoPGVRdlPDyOw2

    • Use the iFixit opening tool to disconnect the battery connector from the motherboard.

  7. dDCbvb1B1h5jM2LC

    • With your hands, pick up and remove the battery from the system.

    Just right except my battery was full width.

    William Corwin -

  8. NcV3G4NdbN2R2mfU
    NcV3G4NdbN2R2mfU
    oUj2dLXrTAYuSMjX
    jEiPvPDjrDvE5PeC

    • Make sure your device is powered off and unplugged before starting.

    • Flip the device over so the base cover of the computer is facing upwards.

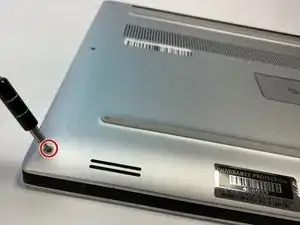

    • Using a Torx T5 screwdriver, remove the ten screws (3mm) on the back.

    • Flip open the system badge and remove the two screws (8.5mm) with a Phillips #00 screwdriver.

  9. 4La6xPIplWidQmPE
    4La6xPIplWidQmPE
    NYbyfCloU5gXCTtf
    1cUVgBAIwUgfneHh

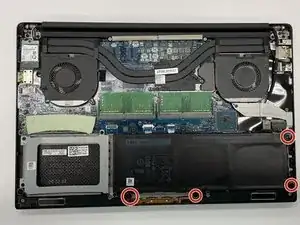

    • Lift the back cover off the plate and remove the four screws (4mm) holding the battery in place.

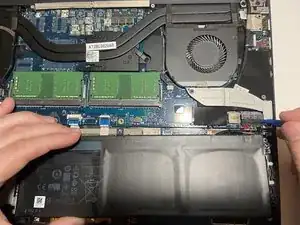

    • Use the iFixit opening tool to disconnect the battery connector from the motherboard.

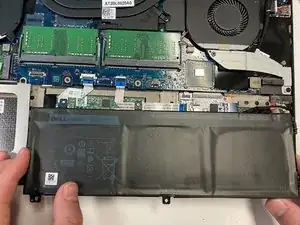

    • Pick up and remove the battery from the system.

  10. qrX5M6I16HaScQMw
    qrX5M6I16HaScQMw
    DXwauOJLMb1YJWSg

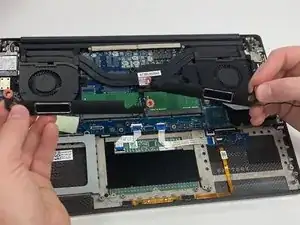

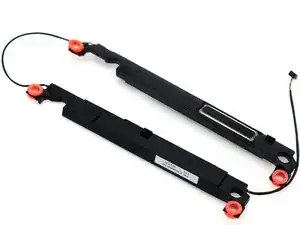

    • Remove the speakers from the back of the computer.

    • Replace speakers with Dell 6GTPY 91 Wh Battery.

  11. nSV2uuwrdPXkWJK2
    nSV2uuwrdPXkWJK2
    qkJbIAWA5drsC2cC
    IgLllPOlC6L6ZTjY

    • Perform Step 2 in reverse to reattach battery.

  12. 2UblGP3cGaI5SAta
    2UblGP3cGaI5SAta
    tgjPcN5XFaUUBJwx
    TLdwfuE6RpAp4sbn

    • Perform Step 1 in reverse to reattach back cover.

Conclusion

Amount of screws holding battery in place may vary.

Author

Margaret Combs

Member since: 08/09/21

504 Reputation

One comment

Thank you for the tutorial!
Just did the swap with speakers form a DELL XPS 15 from an unknown model (most likely wasn't a 9570). Note that these speakers are common inbetween different XPS 15 models (at least XPS 9550 9560 M5510 9350 5520 5510 and Precision 5510 5520 5530 5540 PK23000RP00 TX47W 0TX47W) ******and can be interchanged.
The ones I just used were salvaged from an out-of-service XPS 15 but the parts can be sourced online easily (ex: https://www.amazon.com/Deal4GO-Speaker-R... )

Cheers

Antalog -
