Introduction
The Dell Latitude E6330 is a durable and reliable business laptop, but over time, the keyboard may experience wear and tear from heavy usage. Whether you’re dealing with unresponsive keys, sticky buttons, or a cracked keyboard, replacing it can breathe new life into your device. This guide will walk you through the process of safely removing and replacing the keyboard on a Dell Latitude E6330, ensuring minimal risk to other components. Before beginning, make sure to power off the laptop, disconnect the battery, and have the necessary tools on hand, such as a small Phillips-head screwdriver and a plastic pry tool, to avoid damage during disassembly. With this guide, you’ll have your laptop back to peak performance in no time!
Tools
-
-

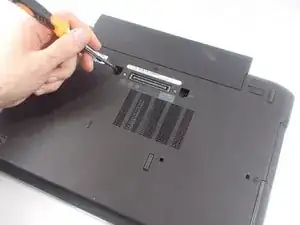

Start by flipping the laptop over and removing the two, deeply recessed, 2.5mm x 5mm screws from the bottom face of the laptop.
-
-
-

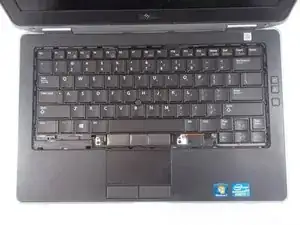

Locate and remove the remaining three 2mm x 3mm screws connecting the keyboard to the frame. (One is located just left of the left mouse button and the remaining two are just right of the right mouse button).
-
-
-

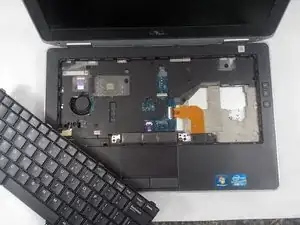

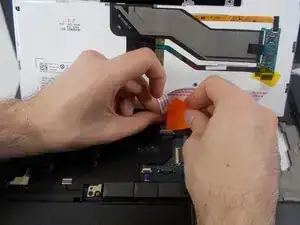

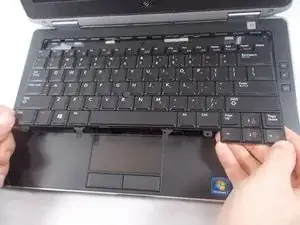

At this time you should be able to gently lift the keyboard off of the frame and expose a ribbon cable connecting it to the motherboard. Flip up the clip holding the ribbon in place and remove the faulty keyboard.
-
To reassemble your device, follow these instructions in reverse order.
