DeWalt DW938 Switch VSR Replacement

Written By: Christopher Chin
  • Comments: 1
DeWalt DW938 Switch VSR Replacement

Difficulty

Moderate

Steps

6

Time Required

5 minutes

Introduction

This guide demonstrates how to replace the Voltage Sensitivity Relay (VSR) for the DeWalt DW938.

  1. wUnvBFRO2CyY2EnW
    wUnvBFRO2CyY2EnW
    ZMA6pBXPQwlAHHDP
    DkhL6cE5O3wYhT2M

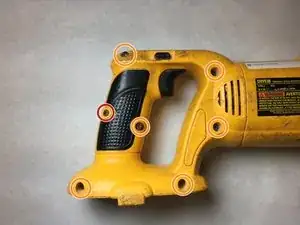

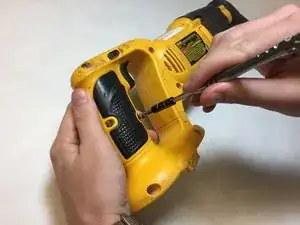

    • Use a torque bit screw driver to remove the T10 18.3 mm screw on the handle.

    • Use a torque bit screw driver to remove 6 T10 21.5 mm screws on the handle.

    • Insure power source is removed from tool.

    • Insure blade is removed from tool.

    The 6 larger screws on mine are T15.

    Justin Lundberg -

  2. 6G4ggDCYVLOVafmb

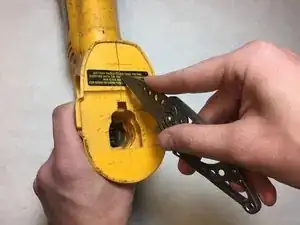

    • Carefully cut the safety sticker with a blade along the seam.

  3. JW63AMDkjBMf3nTH

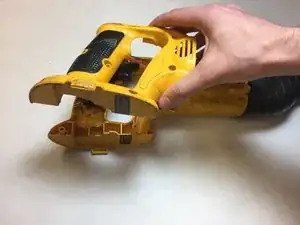

    • Remove the Clam Shell from the handle unit.

  4. mqDsJaEcWVUNPDrc

    • Lift the mechanical device off the pins of the clam shell.

  5. TjmeiEkTrGfNWmhO
    TjmeiEkTrGfNWmhO
    bIXmMLleBHPwwNPQ

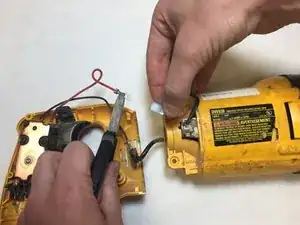

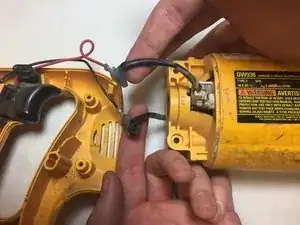

    • Remove the red and black trigger wires from the brush leads with the pliers.

  6. q16gBcxHSETk4nck
    q16gBcxHSETk4nck
    CMqR3DcMd5RkLftM

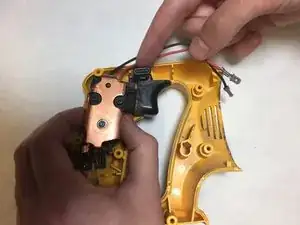

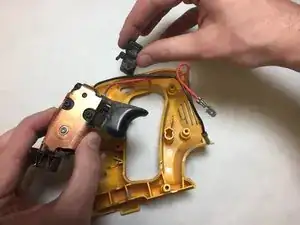

    • Remove the VSR trigger and the lock button.

Conclusion

To reassemble your device, follow these instructions in reverse order.
