DeWalt DW920 Lock Switch Replacement

Written By: Stephen Rada
  • Comments: 1
DeWalt DW920 Lock Switch Replacement

Difficulty

Moderate

Steps

2

Time Required

15 minutes

Introduction

  1. 1nHTUJQEHIHMHsTU

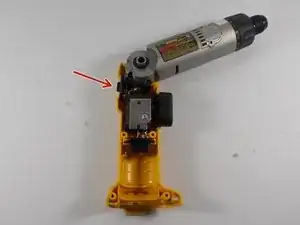

    • Locate the switch on the top of the drill right before the bending joint.

  2. vQEBSLuXpCSqBWiA
    vQEBSLuXpCSqBWiA
    Djicja4RsBDWUWQe

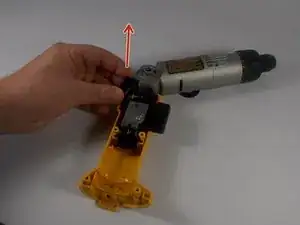

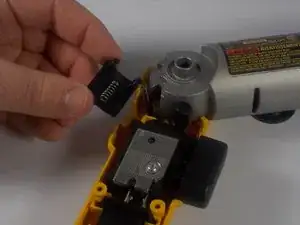

    • Firmly grasp the switch with two fingers and lift it straight up. The spring should remain attached to the switch during this process.

    • It should lift right out. If it is caught on anything do not force it out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
