DeWalt DCS380 Blade Release lever Replacement

Written By: Jonathan Hicks
  • Comments: 1
DeWalt DCS380 Blade Release lever Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

This guide will show how to remove the blade release lever and replace it.

  1. RRLo1dhg2PMMGtIS

    • Remove the battery before disassembly.

    • Remove the shoe by pressing the yellow button on the left side of the hand grip.

    yellow button is lost

    J Hess -

  2. CrgwddNJNa4HqtHH
    CrgwddNJNa4HqtHH
    1RCobgBs4GMSyq3M

    • Remove the two M8x18mm T20 bolts from the front plate.

  3. FnRa4Fm6CqHC1Nxl

    • Pull the front of the grip while holding the saw body in place.

  4. GssMagKjfDGleAVm
    GssMagKjfDGleAVm
    PoB1Rcv6xgNfPWik

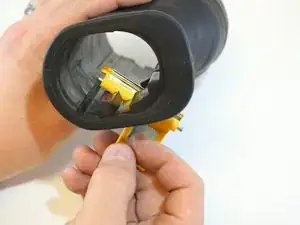

    • Fold the lever all the way back and push it out of the boot.

Conclusion

To reassemble your device, follow these instructions in reverse order.
