Coolpix S01 Zoom Trigger Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

Broken zoom trigger? No problem! If you own a Nikon Coolpix digital camera and are experiencing a jammed zoom trigger or a zoom trigger that just won't work, this guide will surely help.

  1. qFdAyjwBVmjTdOQB
    qFdAyjwBVmjTdOQB
    NwflfPkmhbV4SBau
    dsRBxWJMS3fXBZZY

    • Before starting, make sure the camera is powered off.

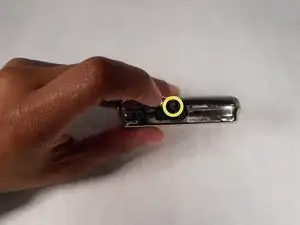

    • Take the Hex and PH000 bit to remove a 2mm screw from the left side of the camera.

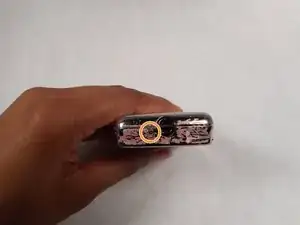

    • Next, remove the 2mm screw from the right side.

    • Lastly, remove the 3mm screw from the bottom of the camera.

  2. 3NtXYNlHPpcq4SLr
    3NtXYNlHPpcq4SLr
    meSFGblAKAXQ6gyd
    lqvTCI6f5c3lLAYB

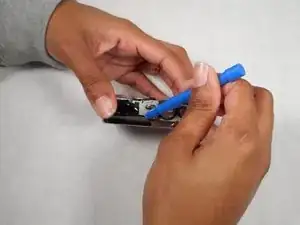

    • Once the two 2mm screws and the 3 mm screw have been removed, use the smallest plastic opening tool and pull up on the sides to reveal the inside of the camera.

    • Be sure to remove the battery before continuing your repair.

  3. LQTwjNX2QmUjQVFP
    LQTwjNX2QmUjQVFP
    nvIAjp2jLm2wQkUb

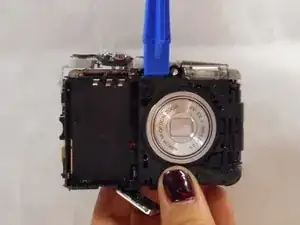

    • After the battery is out, remove the gray button bar from the top of the camera with the smallest opening tool.

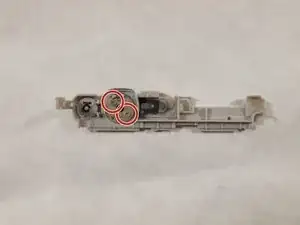

    • With the gray bar detached from the camera, turn it upside down. With the Hex and the J000 bit remove the two 1mm screws.

  4. 6YGbEvjgHs3Avkpg
    6YGbEvjgHs3Avkpg
    XXPRTK5QeltSSRmq

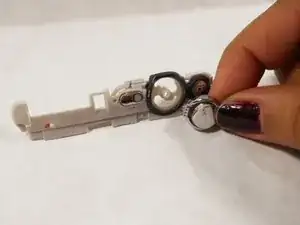

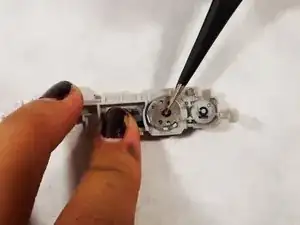

    • Take the needle nose tweezers to remove the black ring in the middle of the button.

    • You have successfully removed the zoom trigger and can replace with a new one if needed.

    • To reassemble follow steps in reverse.

Conclusion

To reassemble your device, follow these instructions in reverse order.
