Coolpix S01 USB Cover Replacement

Written By: Fernando Ochoa
  • Comments: 0
Coolpix S01 USB Cover Replacement

Difficulty

Easy

Steps

3

Time Required

8 minutes

Introduction

  1. VtexfQEbMYOS4GcH
    VtexfQEbMYOS4GcH
    HGBGgOSQ6pNVXLam
    ASZTfRWGTqsw4ow5

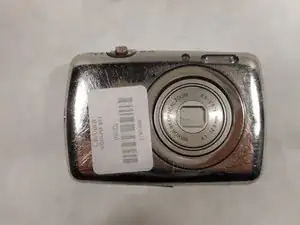

    • First make sure the camera is powered off.

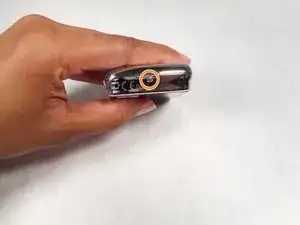

    • Use the Hex and PH000 tool to remove the 2 mm screw from the left side of the camera.

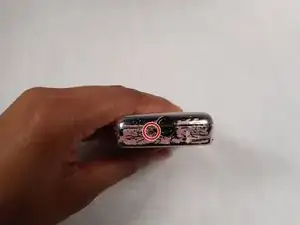

    • Next remove the 2 mm screw from the right side of the camera.

  2. aiOyHYRhGCM4POJo
    aiOyHYRhGCM4POJo
    SSGgV6uXEJdGZCPT
    MbKxWHU4gQLvPsBP

    • Remove the 3mm screw from the bottom of the camera.

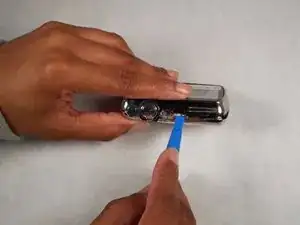

    • Once you have the 2mm and 3mm screws out, gently pull the sides up with the smallest plastic opening tool. This will reveal the inside of the camera.

    • Be sure to remove the battery before continuing your repair.

  3. cxkdTdRNNfyuMDfg
    cxkdTdRNNfyuMDfg
    OKuecuGbtbqH3KYS
    GmnETNWxcPbskblM

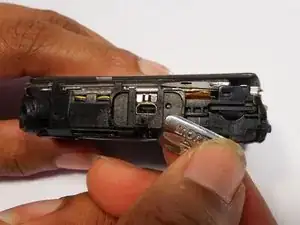

    • On the bottom of the camera, locate the USB port.

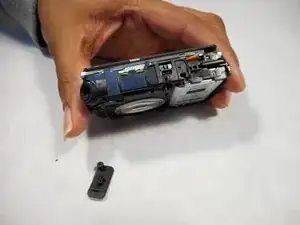

    • Gently slide the USB cover off of the camera with your fingers or tweezers.

    • You can replace the USB cover by purchasing one from a local electronics store or online at iFixit.com.

Conclusion

To reassemble your device, follow these instructions in reverse order.
