Contour Roam2 Rotating Lens Replacement

Written By: Matthew Kofsky
  • Comments: 0
Contour Roam2 Rotating Lens Replacement

Difficulty

Easy

Steps

4

Time Required

5 - 10 minutes

Introduction

This guide will give you step-by-step instructions on how to replace the rotating lens cover on your Contour Roam2. Follow this guide if the lens been scratched or damaged.

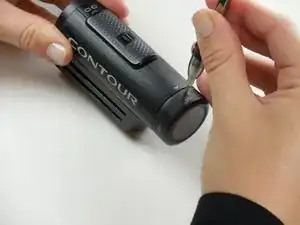

  1. ZDxMA321LKWtjayK

    • Using the phillips head screwdriver (PH000) locate and remove the 4.45mm (.175in) screw by the 180 degree graphic on the metal ring.

    • The screws in the camera are very small and can strip very easily. Apply consistent pressure when removing screws.

  2. eK5pS6cx6TfxUoHF
    eK5pS6cx6TfxUoHF

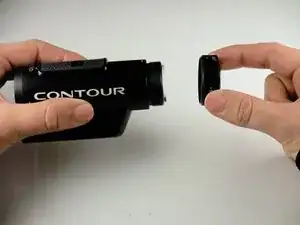

    nElH1eKMjIM1MFEn

    • Rotate the metal ring counterclockwise until completely removed.

  3. BIjDjdk2WiwKK1c6

    • Use a spudger to pry up the black rubber ring around the lens cover.

    • The black rubber ring is vey thin and can easily tear. Use caution when removing.

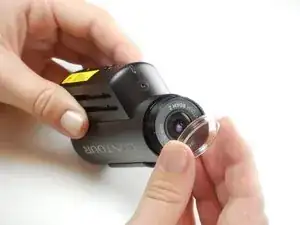

  4. JXFoxZJJxtaXYmGV

    • Remove and replace the lens cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
