Introduction
This manual provides instructions on how to clean the tube and butterfly valve of the throttle body as well as clean and protect the electrical contacts
Tools
Parts
-

                  -
            Firstly Disconnect battery
-
            Always take the negative terminal off first.
-
            '''General Tip After disconnecting the battery leave the car for about 10 mins , This lets any residual energy left in the electrical system to dissapate. It is good practise whatever the job

-

-

                  -

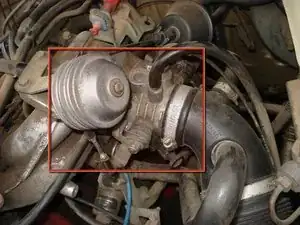

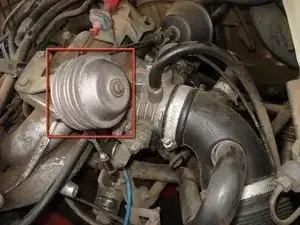

            Locate throttle body on right side of engine, it is between the intake tube and intake manifold.

-

-

                  -

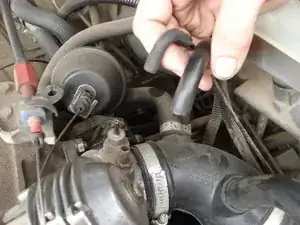

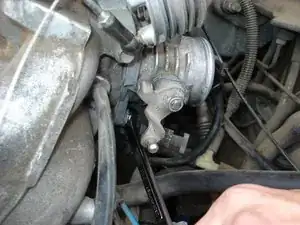

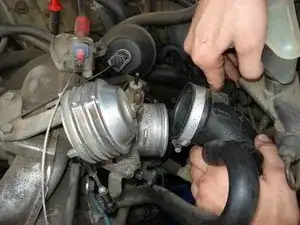

            Use a flat head screwdriver to loosen the hose clamp attaching the intake tube to the throttle body.

-

-

                  -

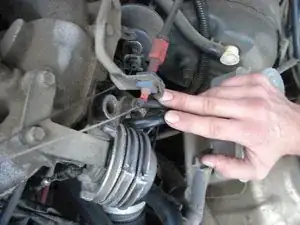

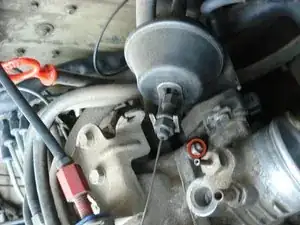

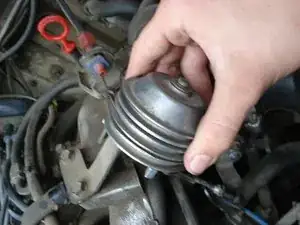

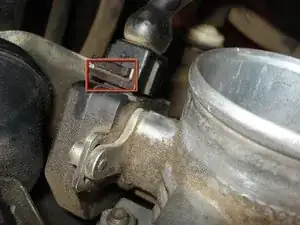

            Locate throttle linkage arm.
-

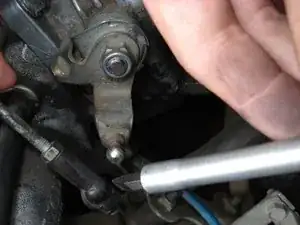

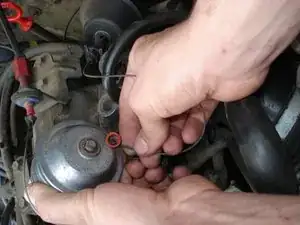

            Open the locking clip with a flat head screwdriver.
-

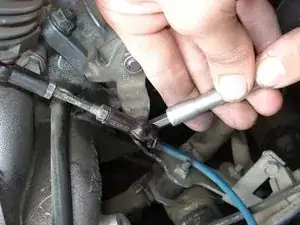

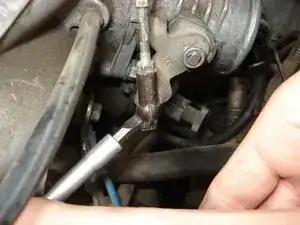

            Pry off the linkage arm with a flat head screwdriver.

-

-

                  -

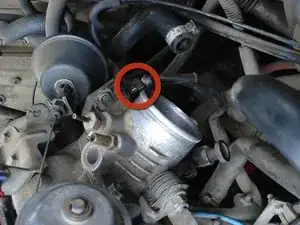

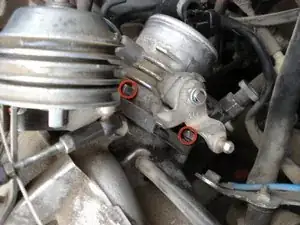

            Locate the three 13mm nuts attaching the throttle body to the intake manifold.
-

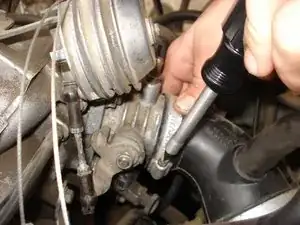

            Remove nuts with a 13mm crescent wrench.

-

-

                  -

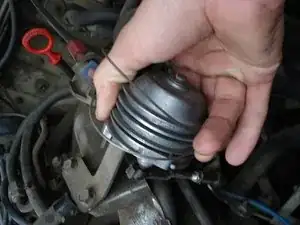

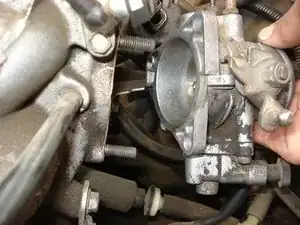

            Lift the throttle body off of the intake manifold.
-
            The manifold is now out of the engine bay and ready for cleaning or adjustment.

-

-

                  -
            Cover the electrical contacts with a shop towel to prevent throttle body cleaner from inadvertently spilling over.

-

-

                  -

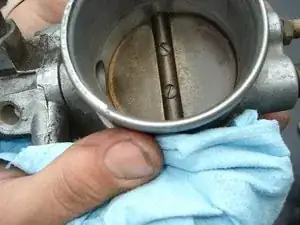

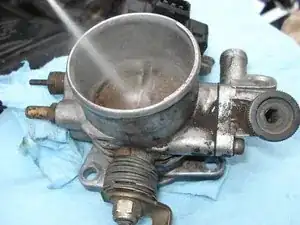

            Liberally apply throttle body cleaner to the inside of throttle body and butterfly valve.
-
            Use a shop towel sprayed with cleaner to wipe off thick grime if severely dirtied.

-

-

                  -

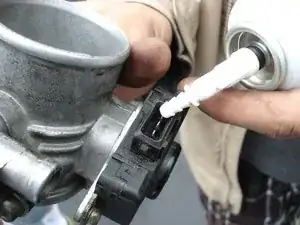

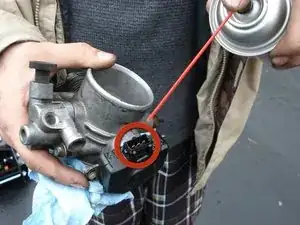

            Spray electrical cleaner on the metal contacts to blast away particles in the bracket.
-

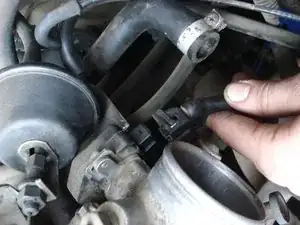

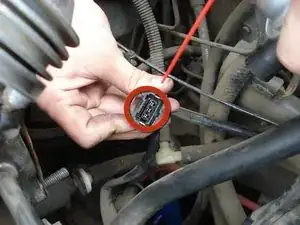

            Spray off the wiring clip that attaches to the throttle body inside the engine bay.

-

To reinstall the throttle body after cleaning follow reverse directions for prerequisite guide #2
