Circular Saw Blade Replacement

Written By: Craig Lloyd
  • Comments: 5
Circular Saw Blade Replacement

Difficulty

Easy

Steps

7

Time Required

5 minutes

Introduction

Whether your circular saw blade is worn out, or you just want to switch it out for a different style, it’s really easy to swap out blades on pretty much any circular saw—and it takes just a few minutes.

This guide uses a Ryobi P504G circular saw, but the process is very similar for most circular saws.

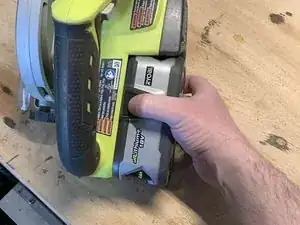

  1. yunZ3W1dZZtfNVCQ
    yunZ3W1dZZtfNVCQ
    JGbSPPO5NYYjqFnl

    • Unplug your circular saw or remove the battery before replacing the blade!

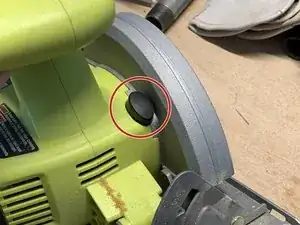

  2. NE5LWupWKKTvXTcP
    NE5LWupWKKTvXTcP
    m5QPNEO5VHjVPS1J
    ilRAmyPvgae5JbSK

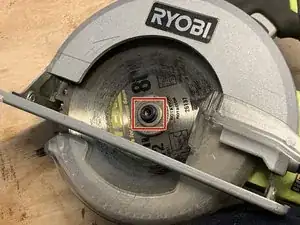

    • Press and hold down the blade lock button to keep the blade from turning while you loosen it.

    • Loosen the arbor's hex bolt in the center of the blade using a 5mm hex key, making sure to loosen clockwise since the bolt threads are reversed.

    • Your circular saw may already come with a hex key.

    I'm turning it clockwise, it didn't come with a hex but I had one. Still I can't get it to come loose. Any advice?

    darlene covey -

    I have a hex the right size, I'm turning it clockwise while I'm holding the button to lock it in place and I can't get it to loosen. This is an old blade and it's been on there for a while. Any advice or tips?

    darlene covey -

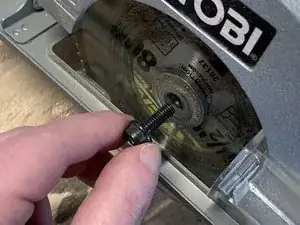

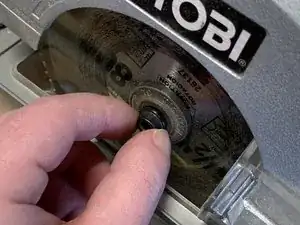

  3. mbRLuMkctBodng5Y
    mbRLuMkctBodng5Y
    ywdPRJREe2JfEqq5

    • Once loosened, continue unscrewing the bolt with your fingers and remove it from the saw.

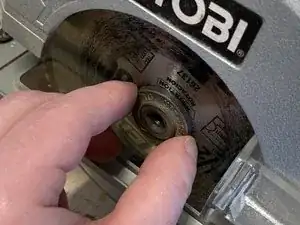

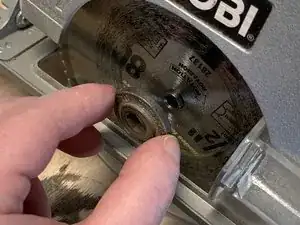

  4. RnWgf6HGO2BiRKQu
    RnWgf6HGO2BiRKQu
    djXGhaXZ33HbSYUJ

    • Remove the arbor washer.

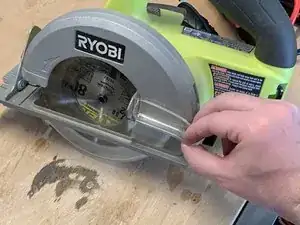

  5. uG1VOZDM3OwobZhI
    uG1VOZDM3OwobZhI
    bWOPxcLY3O5bLTvq
    fljrip6IXhaHTKpH

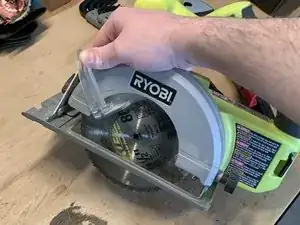

    • Completely retract the blade guard.

    • You can hold the blade guard in place with a clamp while you change the blade.

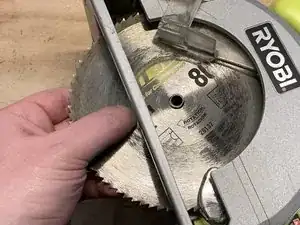

  6. wNkFu2PQCVuEbdpH
    wNkFu2PQCVuEbdpH
    jUqeWYGPj2x5CGXL
    OO22vQQBcpXSGH1O

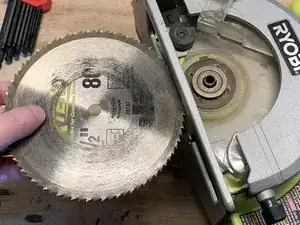

    • Set the circular saw on its side and carefully lift up the blade to unseat it from the arbor.

    • Slowly slide out the blade.

    • Use extreme caution when handling the blade!

  7. LSKUc5QuFdFFsL6E

    • When inserting the new blade, be sure to note its rotation and install it in the correct orientation.

Conclusion

To reassemble your device, follow these instructions in reverse order.
