Chumby One Motherboard Replacement

Written By: Jordan Houchins
  • Comments: 0
Chumby One Motherboard Replacement

Difficulty

Moderate

Steps

13

Time Required

20 minutes

Introduction

A guide to show how to replace Chumby One motherboard.

  1. pmigtkDvdNFYuuep

    • Remove 4 self-adhesive plastic dots covering the screw holes.

  2. 6SZFRLXAN4ocuMEZ

    • Remove the four 2mm screws with a Phillips screwdriver.

  3. cTsQJ6SGMsFHNbwD

    • Remove the back and bottom cover.

  4. qJDlK2kloASCdxWQ

    • Disconnect the battery connector from the motherboard with a plastic opening tool.

  5. mRjEADYhX6AcnExm

    • Disconnect the microphone connector from the motherboard with a plastic opening tool.

  6. 2YOjqIM4VxHQU5bn

    • Remove the display ribbon cable from its socket with a plastic opening tool.

  7. iYQ1SE4JQKEVNIMR

    • Remove the volume knob from the side of the Chumby One with a plastic opening tool.

  8. k6RXjU6YMKC3YRod

    • Remove the four 6mm screws using a PH000 bit on the inner chassis.

  9. Qosgy2QHBM2ujA2P

    • Remove the inner components from the outer shell.

  10. JouGUS1lLRr62PZZ

    • Remove the speaker connector using a plastic spudger.

  11. fG4FuACFHBlvQR6K

    • Remove the Chumby button connector using a plastic spudger.

  12. b3ACrCWlqP5RHfGP

    • Remove three 6mm screws using a PH000 bit.

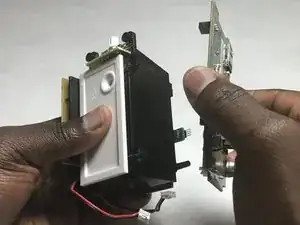

  13. GHAOAX4bLDMJQgvJ

    • Remove the motherboard by pulling straight away from the housing.

    • Removing the motherboard there are 2 pins and socket connectors that may cause injury.

Conclusion

To reassemble your device, follow these instructions in reverse order.
