Cassida Counterfeit Detector Wire on Motor Replacement

Written By: Michael Edwards
  • Comments: 0
Cassida Counterfeit Detector Wire on Motor Replacement

Difficulty

Moderate

Steps

9

Time Required

40 minutes

Introduction

  1. YlU3qJFMWjKlx6VD

    • Remove the rubber legs.

  2. JXmJdTNHEsHRQvXl

    • Using a Phillips #1 bit, remove the circled screws.

  3. 66vXmRrnbgaO6EYB

    • Pry the top cover off, starting from the side with the switch, with a metal spudger.

  4. owsItk1GV2wW5kFo

    • Pop the 4 tabs on the top of the machine up with a metal spudger and then remove the 2 side panels.

  5. WAsf3O1xHcWqUAor

    • Disconnect the wires circled and then remove the top section from the bottom section just by pulling the top section straight up and holding onto the bottom.

  6. NoAjs4JRQJkWmpph

    • All the parts disassembled.

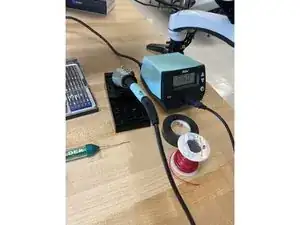

  7. UNlCgcVQPBD1Esb3

    • Get your solder iron and set it to 660 deg Fahrenheit.

    • We recommend using 60/40 solder.

    • Solid core wire is easier to use than standard.

  8. 5Z2rBePrCCDPtWbj

    • Desolder the contact point for the wire by pressing the hot iron to the contact point until the solder flows and the cable can be pulled from the board.

    • Be careful not to make skin contact with the iron.

    • For more detailed help with soldering and desoldering, check out this handy guide for tips and best practices.

  9. w3pwIn2fsfsxBEih

    • Make sure the solder looks like so. It should look like a small mountain.

    • The motor should now be able to be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
