Cassida Counterfeit Detector Motor Band Replacement

Written By: TREVOR j NELMS
  • Comments: 0
Cassida Counterfeit Detector Motor Band Replacement

Difficulty

Moderate

Steps

8

Time Required

10 minutes

Introduction

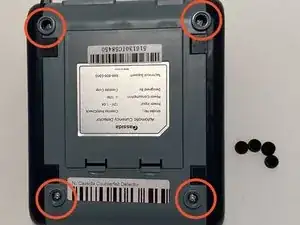

  1. YlU3qJFMWjKlx6VD

    • Remove the rubber legs.

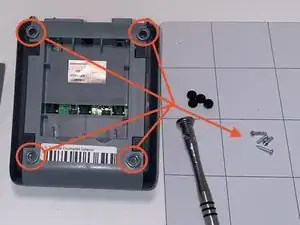

  2. JXmJdTNHEsHRQvXl

    • Using a Phillips #1 bit, remove the circled screws.

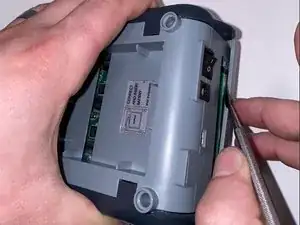

  3. 66vXmRrnbgaO6EYB

    • Pry the top cover off, starting from the side with the switch, with a metal spudger.

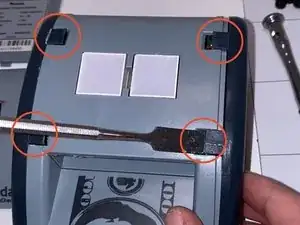

  4. owsItk1GV2wW5kFo

    • Pop the 4 tabs on the top of the machine up with a metal spudger and then remove the 2 side panels.

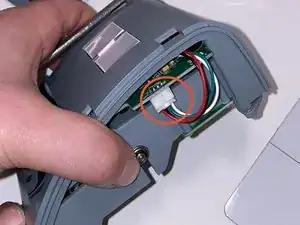

  5. WAsf3O1xHcWqUAor

    • Disconnect the wires circled and then remove the top section from the bottom section just by pulling the top section straight up and holding onto the bottom.

  6. NoAjs4JRQJkWmpph

    • All the parts disassembled.

  7. 22JyHGl3NyaNGcph

    • This is the band you will be replacing. If it is broken or loose, remove from the device completely.

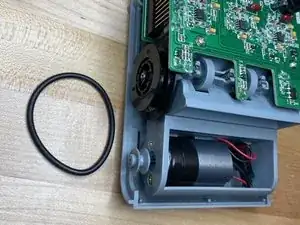

  8. ZwWKUyRNXHeiYmas

    • Install new band by placing it around the small grey pulley and then working it around the larger black pulley.

Conclusion

To reassemble your device, follow these instructions in reverse order.
